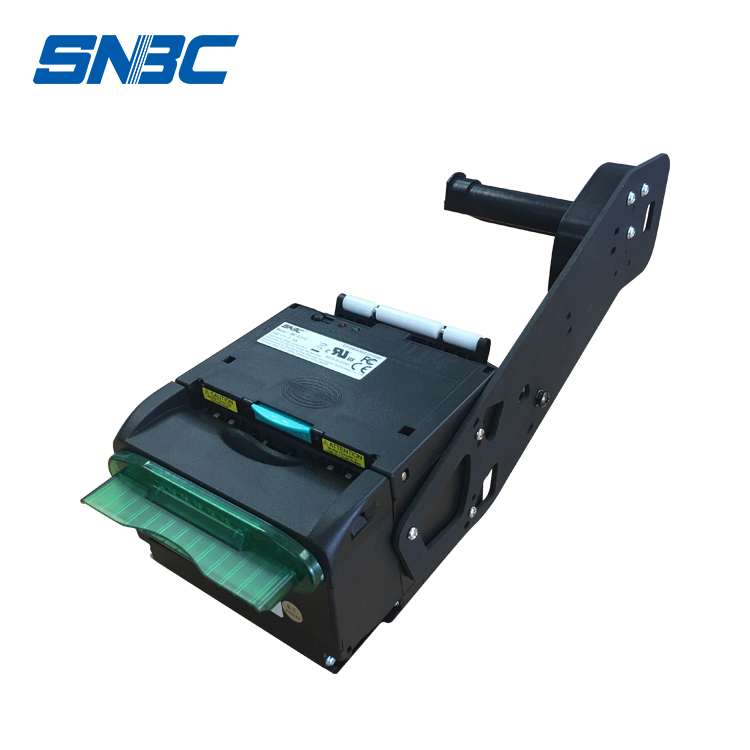

Features:
- Small footprint
- Anti-jam and anti-pull function
- Specially designed for unattended printing applications
- High-speed printing (230mm/s)
- With capacity to drive up to 300mm paper roll
- Auto paper loading/auto cutter
- Modular design, easy to use and maintain
Applications:
- Self-service kiosks
- ATMs & Banking machine
- Vending machine
- Gaming machine
- Queue management system
Item |
Specifications |
|
Print method |
Direct thermal line printing |
|
Resolution |
203x203DPI |
|
Print width |
Max. 80mm |
|
Print speed |
Standard: 150mm/s |
|
Max.230mm/s | ||
Memory |
FLASH 4M SDRAM 2M |
|
Interface |
USB2.0/serial |
|
Barcodes Fonts |
One-dimensional barcode |
UPC-A, UPC-EJAN8 (EAN8), JAN13 (EAN 13), CODE 39, CODE 93, CODE 128, ITF, CODABAR |
Fonts |
Font A(12x24), Font B(9x17), Kanji Font(24x24) |
|
Paper |
Paper type |
Continuous paper; Marked paper |
Paper thickness |
0.05~0.1 mm |
|
Paper roll OD |
Max.300mm |
|
Paper roll width |
48~82.5mm, continuously adjustable |
|
Paper cut |
Full cut |
|
Presenter |
Paper out mode |
Retract/hold paper/Spit out paper/close |
Paper out speed |
Max.: 600mm/s |
|
Paper retraction speed |
Max.: 600mm/s |
|
Power supply |
Input |
AC 220V±5%, 50/60Hz |
Output |
24V, 2.5A |
|
Reliability |
Print head lifetime |
>150km |
Cutter lifetime |
>1,000,000 cuts (full cut,paper thickness:0.065mm) |
|
MTBF |
360,000 hours |
|
MCBF |
7,000,000 lines |
|
Environment |
Operation condition |
0~45°C, 20~90%RH (40°C) |
Storage condition |
-40°C ~60°C, 15%~ 98% RH (40°C) |
|
Physics Spec. |
Dimensions |
116(W) x 146.8(L) x 76.7(H)mm (without paper holder) |
Weight |
0.8kg |
|
Standard |
CE、CB、FCC、UL |
|
