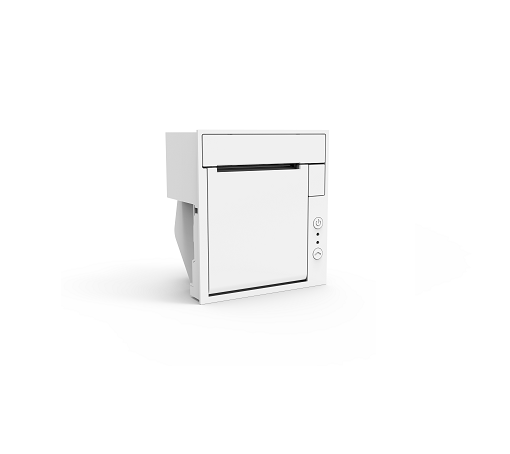

BT-T180P 80mm Panel printer
80mm Panel printer
Product Description
Specification Configuration
Related Download

Features:

- Compact front panel mounted structure

- Easy installation with only 4 screws

- High strength cutter with automatic reset and easy maintenance design

- High strength front panel bracket supports 5000 times of open cover

- 80mm ultra big roll bucket


Applications:

- Supermarket

- Catering

- Health Care

- Finance

- Entertainment


Item

 Specifications

Print

Print   method

Direct thermal line printing

Resolution

203DPIx203DPI

Print   speed

Max,200mm/s

Print   width Interface

Max.72mm

USB,  Serial

Sensor

Sensor

Cover detection, Paper detection, cutter detection,TPH overheat protection, Paper  near

end   (Optional)

Barcode

1D

UPC-A, UPC-E, JAN8(EAN8), JAN13(EAN13), CODE 39, CODE 93, CODE128, ITF, CODABAR

2D

QR

Fonts

Fonts

FontA(12*24), FontB(9*17); enlarge(1-6x); underline; reverse

GB2312,GB18030,   Kanji Font (24*24)

Paper

Paper   type

Thermal  paper

Paper   width

80±0.5mm

Paper   thickness

0.06-0.08mm

Paper   roll OD

MAX.80mm

Paper   cut

Full  cut, partial cut

Cash   Drawer

Cash   drawer

1 cash drawer(Optional)

Electric   Lock

Electric   lock

Optional

Buzzel

Buzzel

Standard

Power   Supply

Power   Supply

24V/2A, 12V/3A

Environment

Operation   condition

5~45°C, 20~90% (40°C)

Storage   condition

-40~60°C, 20~93%RH (40°C)

Reliability

Print   head lifetime

>100Km

Cutter   lifetime

1000,000   cuts

Physics   Spec.

Physics   Spec.

150.75(H)*136.4(W)*97(D)mm




File name File description File size Download button
Note: The above product performance data is recorded by SNBC based on the controlled environment test, and the actual usage depends on the external environment.
×
