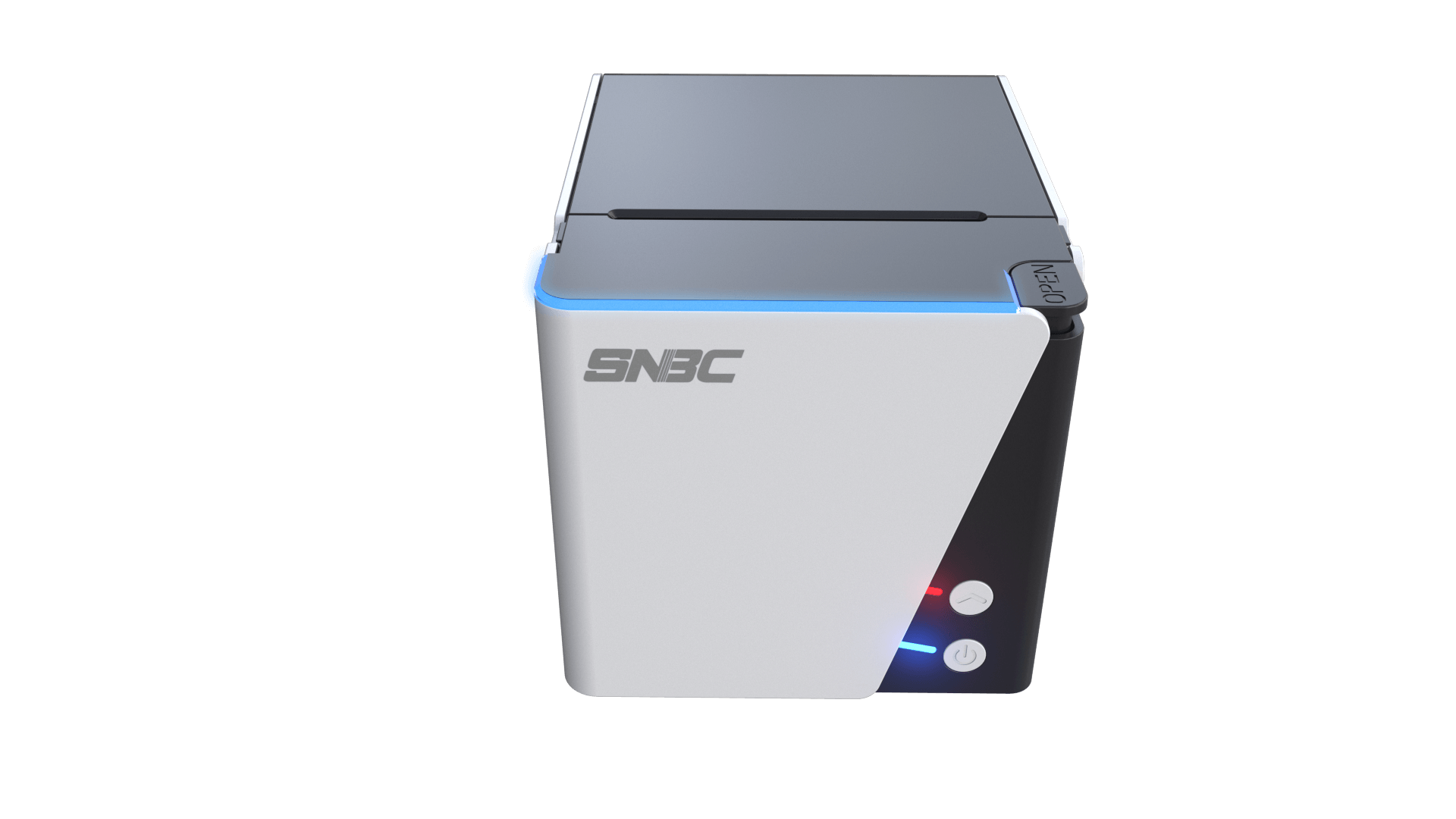

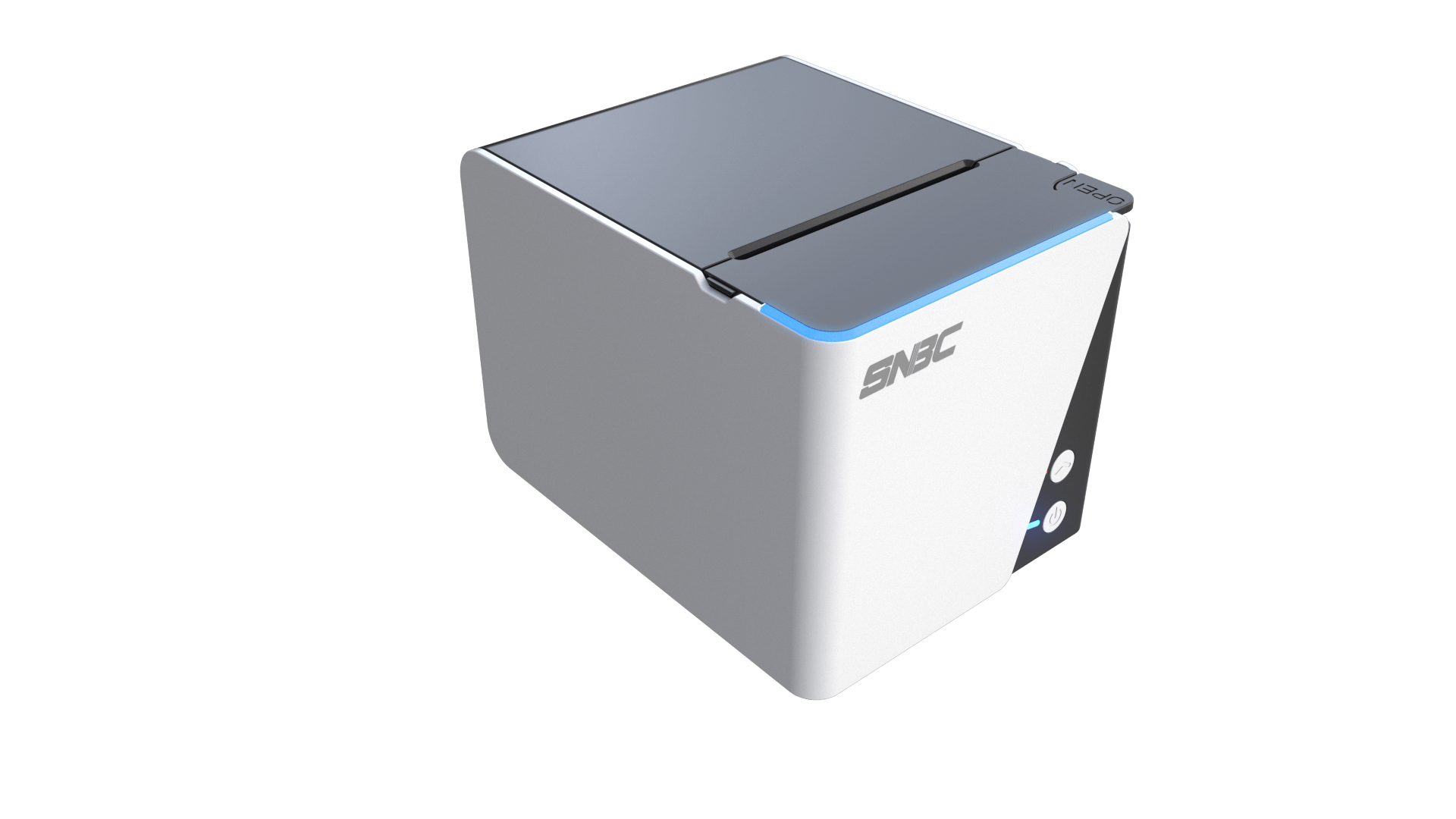

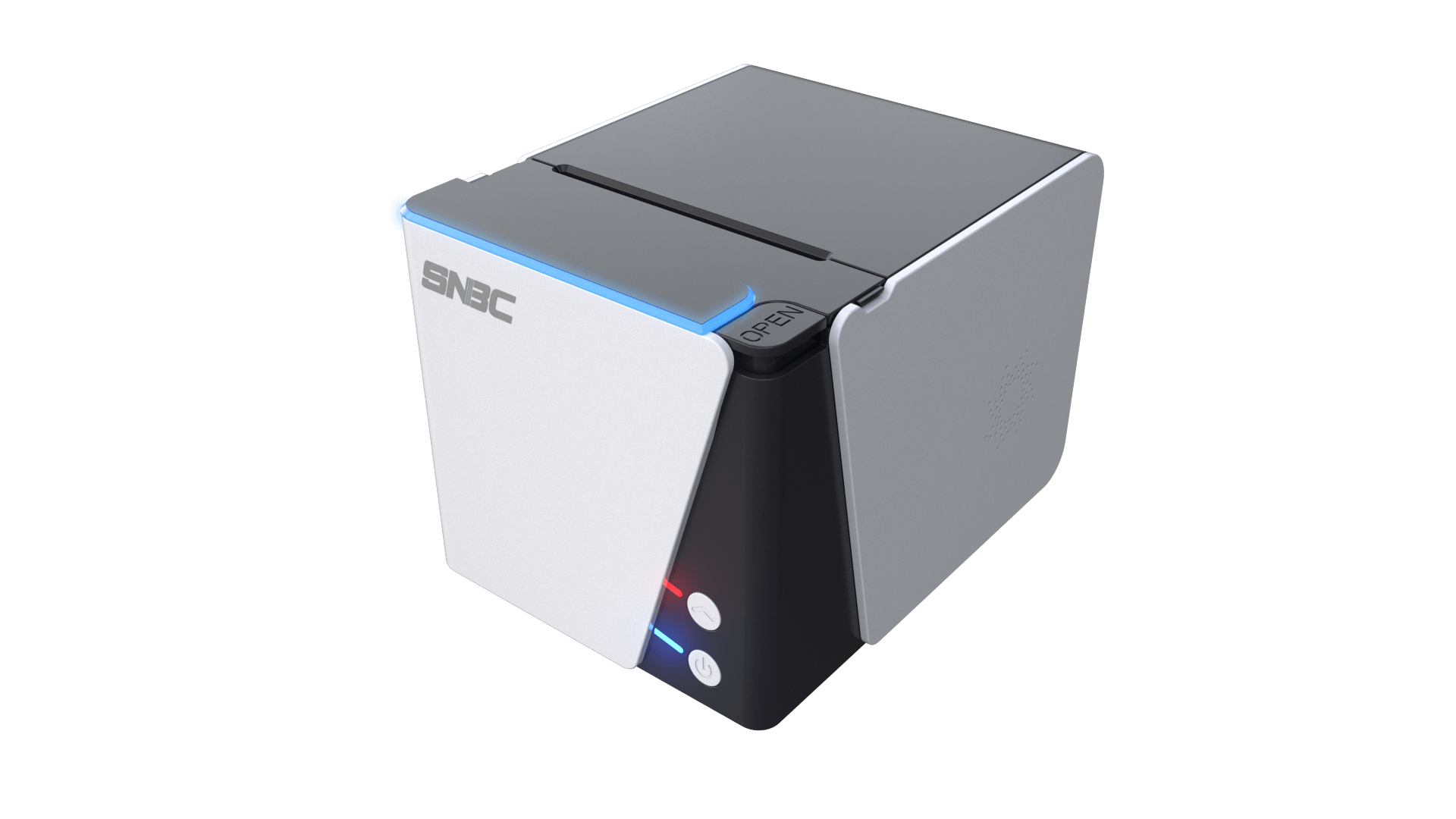

BTP-N80 Pro

Product Specifications

Specification	ltem	Relevant Data
Print	Print method	Direct thermal printing
	Resolution	203 DPI

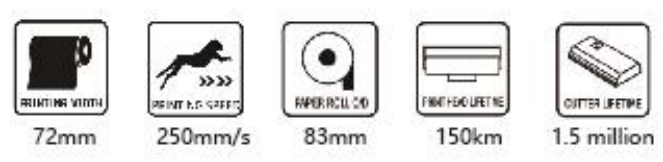

	Print width	Max.72mm
	Print speed	Max.250mm/s
	Memory	FLASH: 4MB, SDRAM: 2MB
	Driver	Windows, MacOs, Linux
	Sensor	Paper end sensor, TPH voltage sensor, Cutter sensorTPH overheating sensor, Cover opening sensor, Blackmark sensor
	Interface	Standard: USB Optional: Serial, Ethernet, Wi-Fi, Bluetooth
	Cash drawer control	1 cash drawer
Barcode	Barcode	1D: UPC-A, UPC-E,EAN-8, EAN-13, Code 39, Code93, Code 128, ITF, Codabar
Barcode	Barcode	2D: QR code, PDF417, DataMatrix
Font	Font	Standard ASCll(12X24), Compressed ASCl(9X17),Traditional/Simplified Chinese
	Character set	95 Alphanumeric, 17 types of international charactersOptional: Traditional/Simplified Chinese
	Character modification	Rotate(0°,90°,180, 270°), bold, underline, reverse,enlarge(1~6X)
Graphic	Graphic printing	Bitmap image downloading and direct bitmap image print
		RAM bitmap download buffer size: 64KB
		FLASH bitmap download buffer size: 256KB
Paper	Paper type	Continuous paper, Marked paper
	Paper width	57.5/80+0.5mm
	Paper thickness	0.06~0.08mm
	Paper out	Full cut, Partial cut, Tear off
	Paper roll OD	Max83mm
Power supply	Input	AC 100~240V,50/60Hz
Power supply	Output	DC 24V, 2.5A
Reliability	Print head lifetime	150 KM
Reliability	Cutter lifetime	1.500.000 cuts
Environment	Operation condition	5~45℃,20~90%RH(40℃)
Environment	Storage condition	-40~60℃,20~93%RH(40℃)
Dimension	Dimension	126(W)x161(D)x117(H)mm
Weight	Weight	Approx. 1Kg
Standard	Certification	CCC
