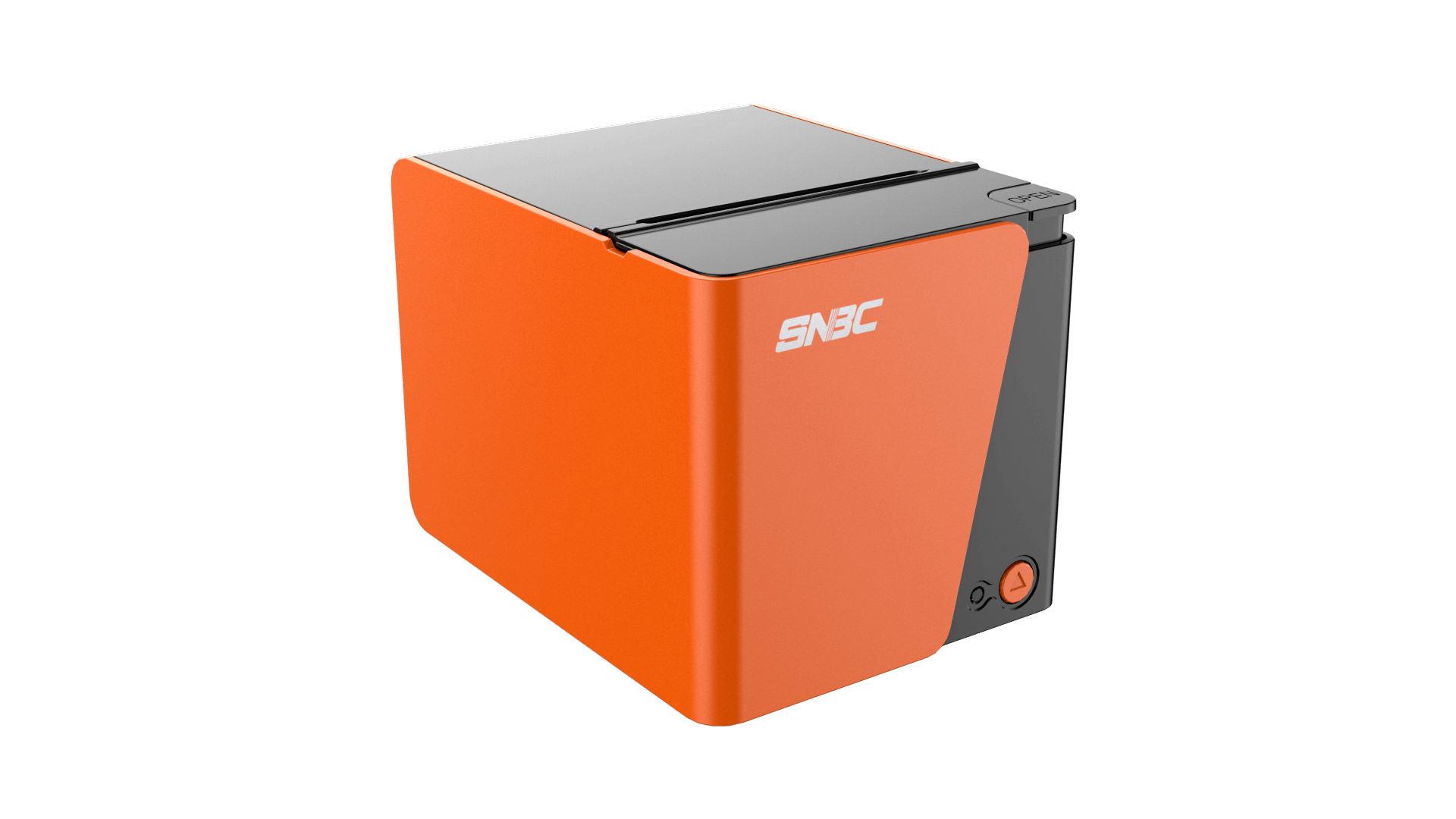

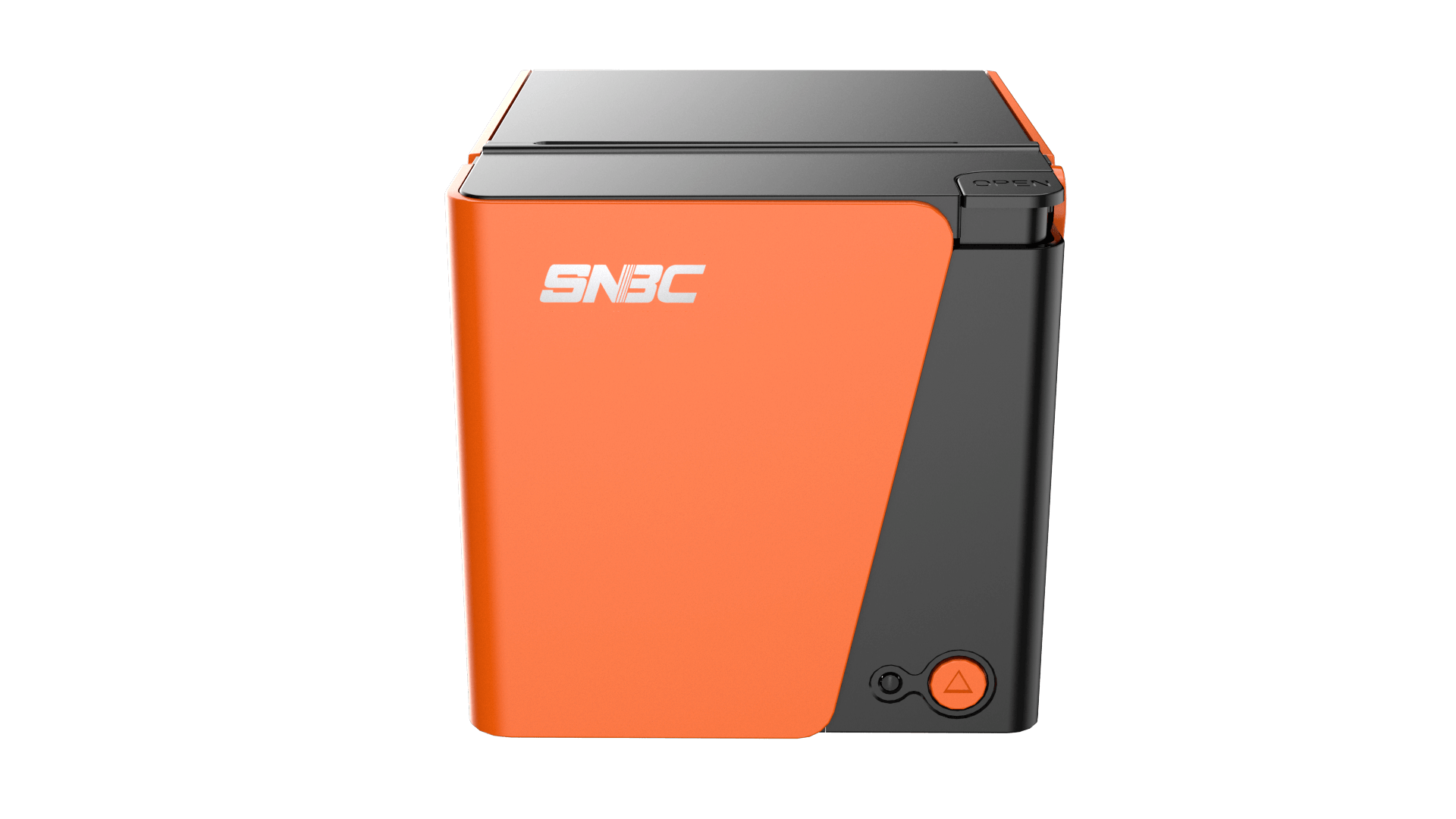

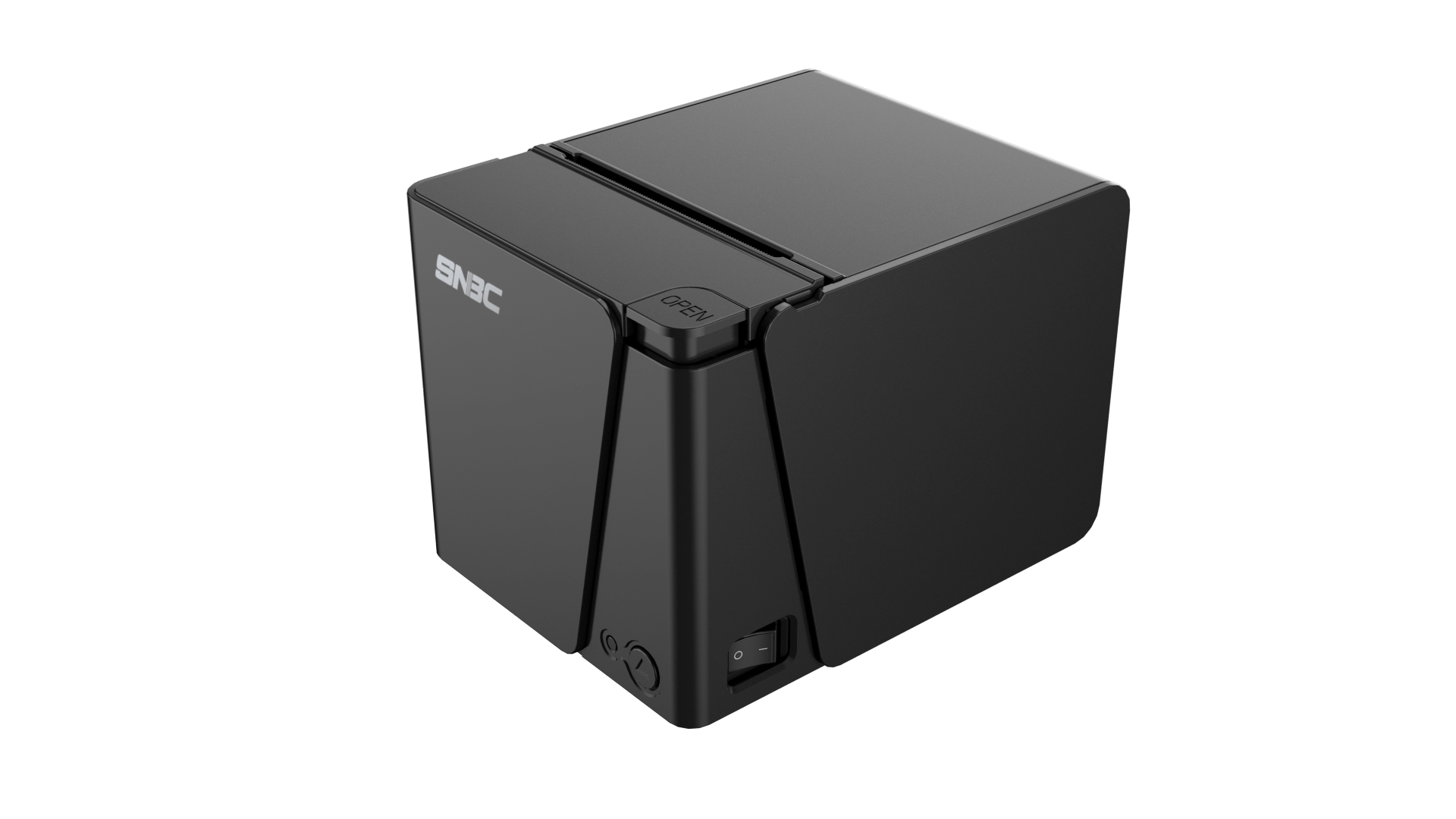

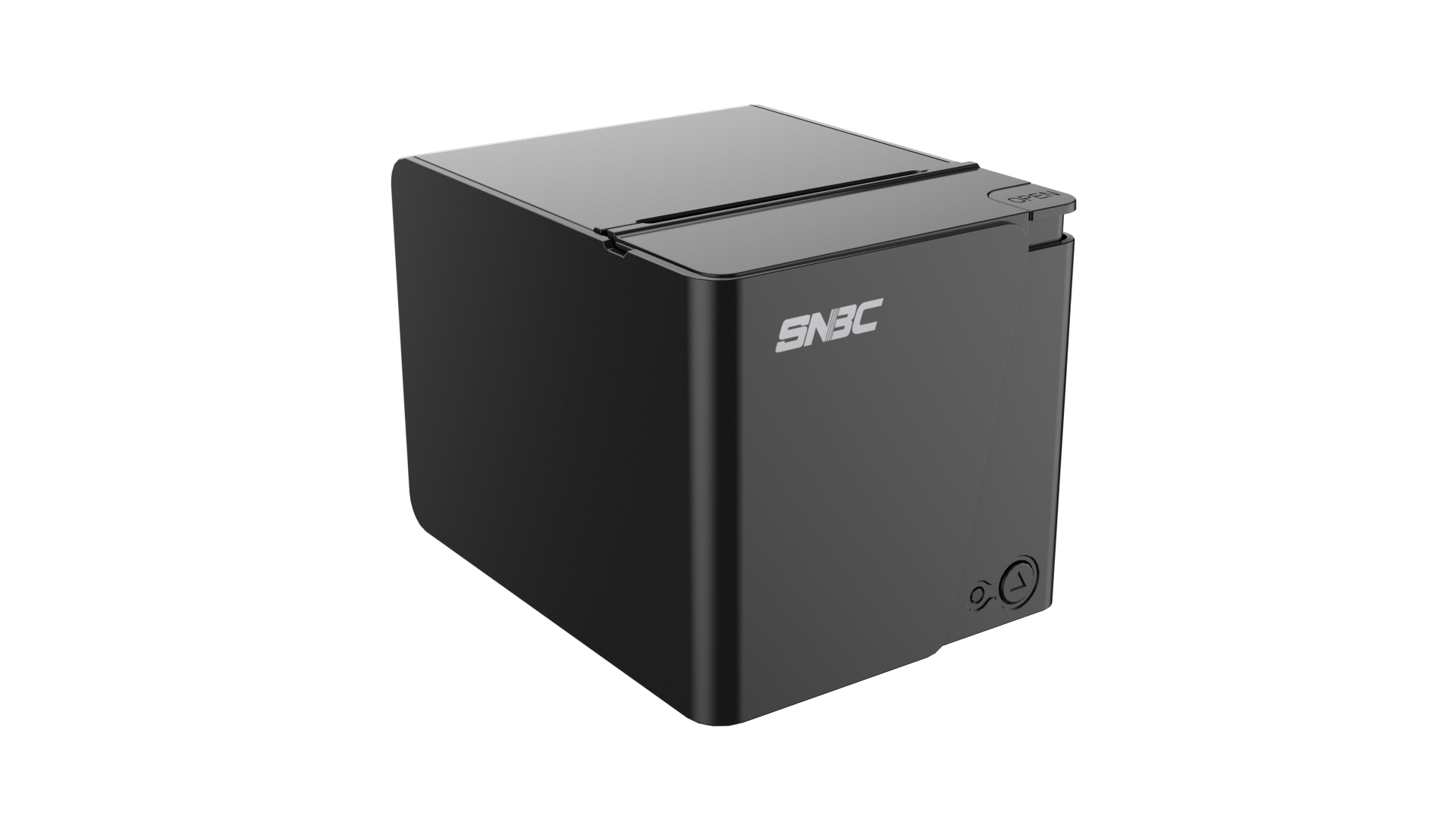

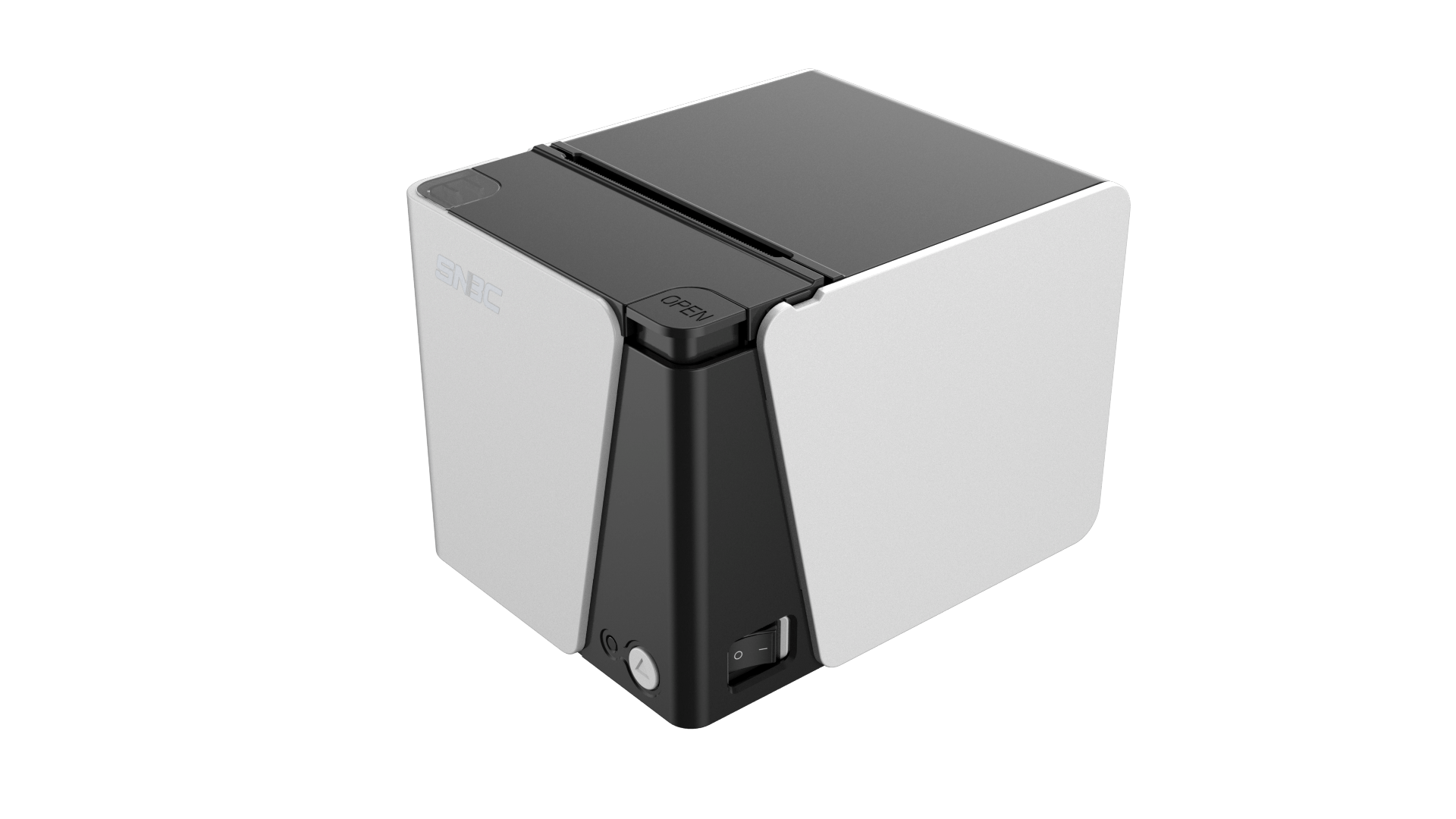

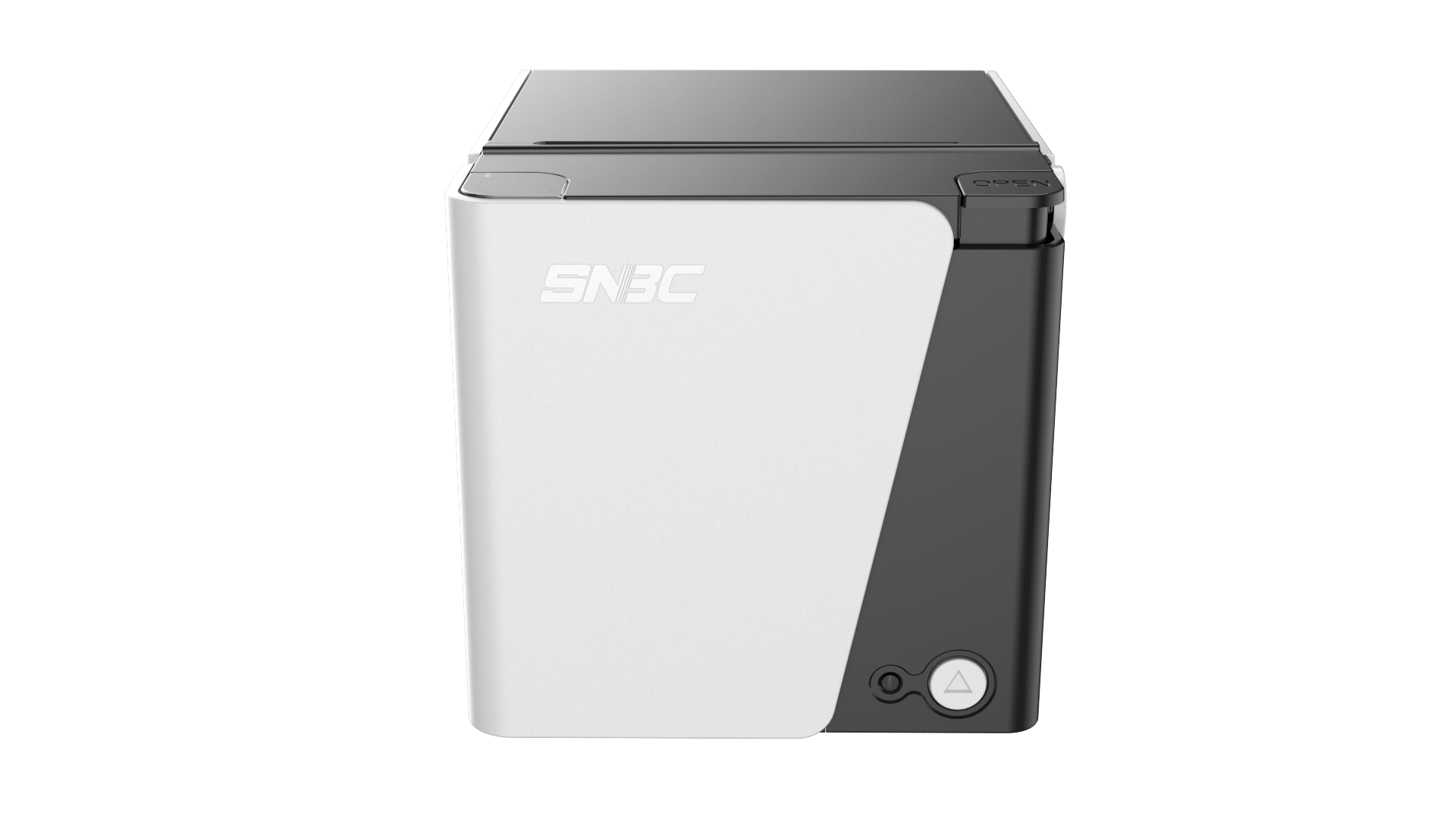

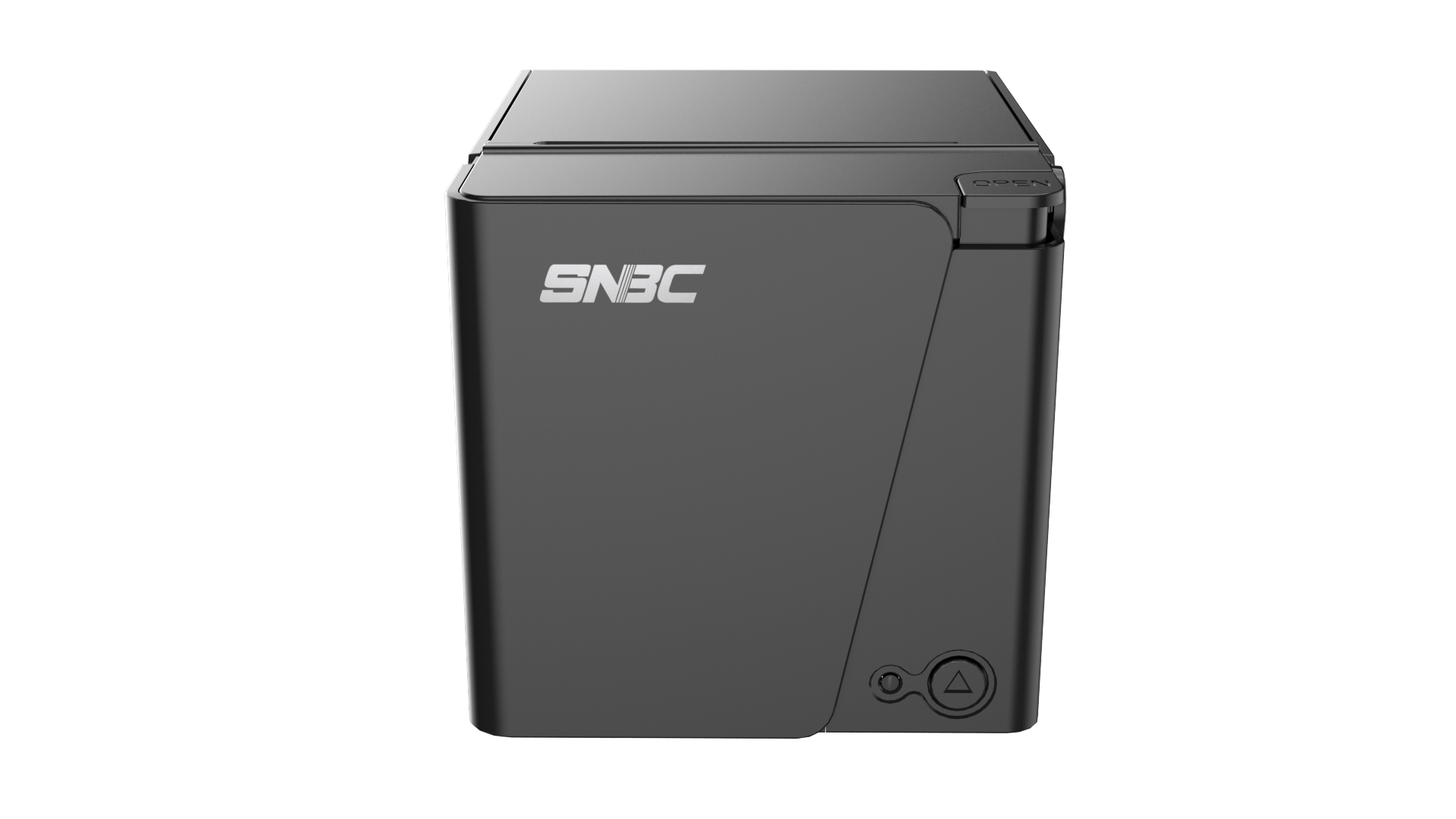

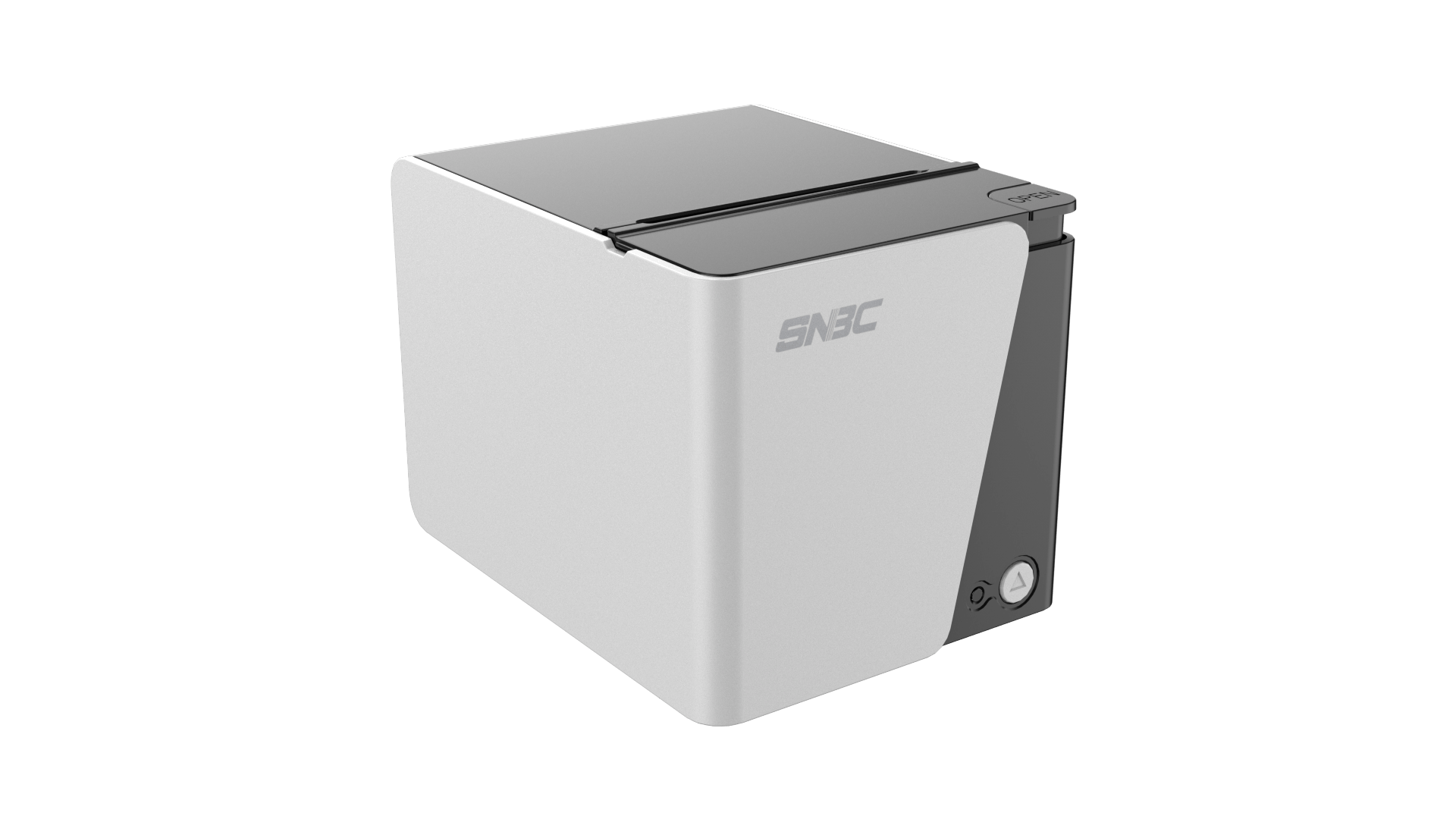

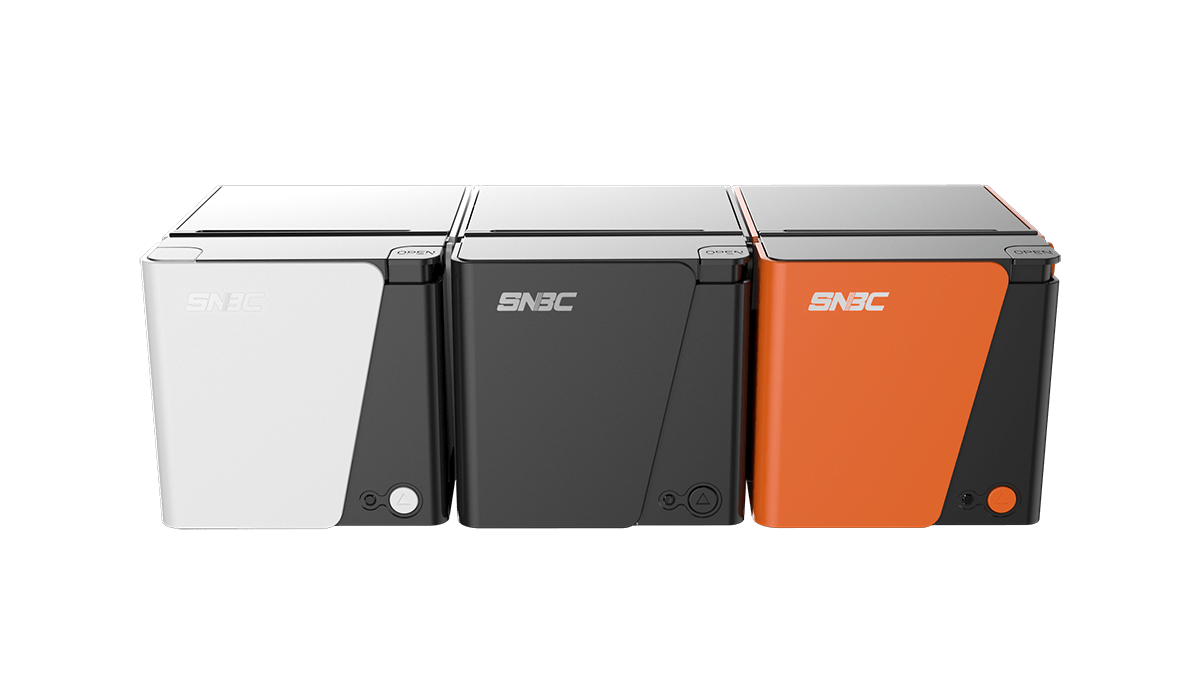

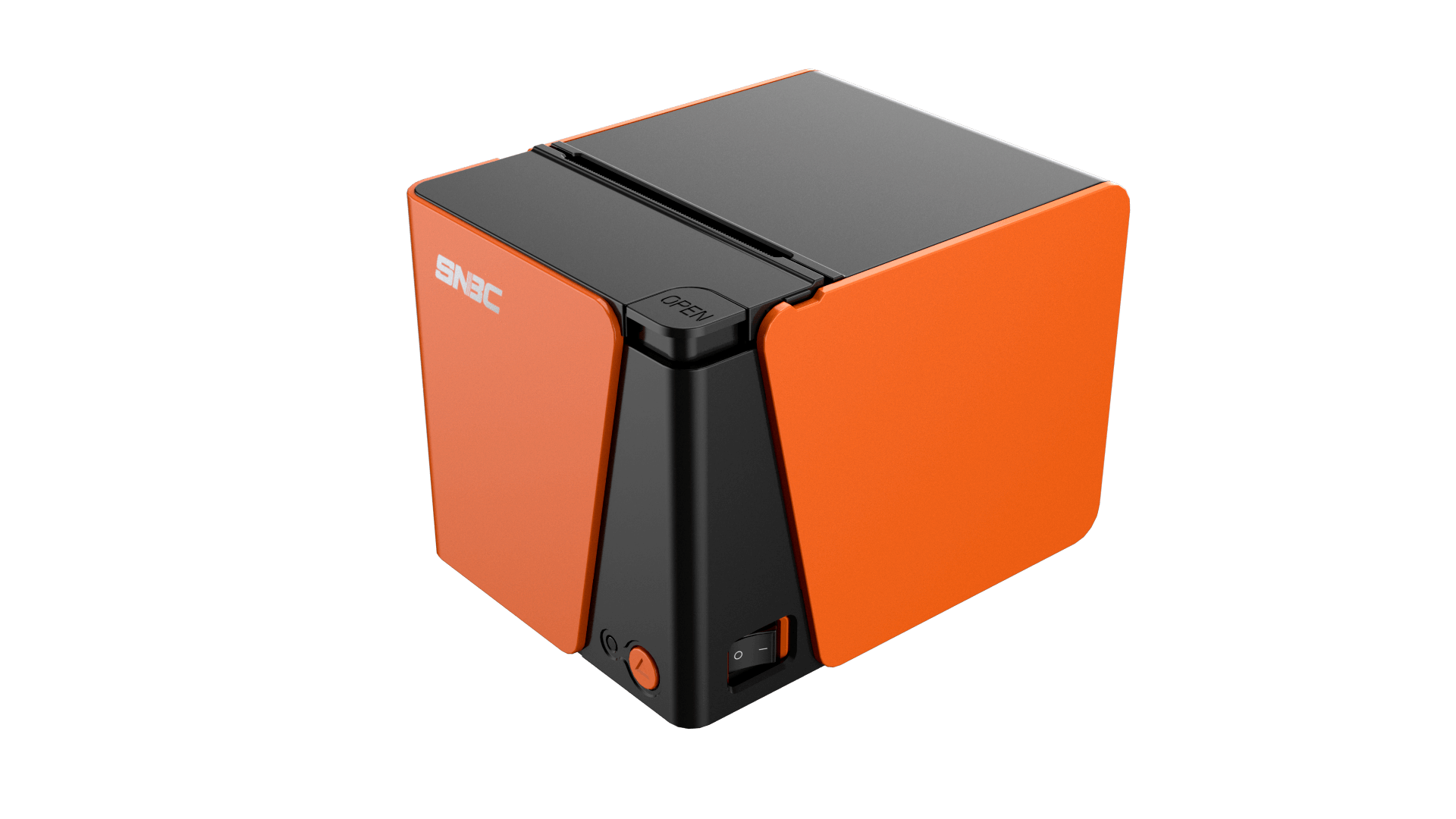

BTP-N66

Product Specifications

Specification	ltem	Relevant Data
Print	Print method	Direct thermal printing
	Resolution	203 DPI
	Print width	Max.72mm
	Print speed	Max.230mm/s
	Memory	FLASH: 4MB, SDRAM: 2MB
	Driver	Windows, MacOs, Linux
	Sensor	Paper end sensor, TPH voltage sensor, Cutter sensor,TPH overheating sensor, Cover opening sensor, Blackmark sensor
	Interface	Standard: USB+Ethernet Optional: USB+Bluetooth
	Cash drawer control	1 cash drawer
Barcode	Barcode	1D: UPC-A,UPC-E, EAN-8, EAN-13, Code 39, Code 93,Code 128, ITF, Codabar
Barcode	Barcode	2D:QR code, PDF417,Maxicode, DataMatrix,GS1 Composite
Font	Font	Standard ASCll(12X24),Compressed ASCll(9X17),Traditional/Simplified Chinese
	Character set	95 Alphanumeric, 17 types of international charactersOptional: Traditional/Simplified Chinese
	Character modification	Rotate(0, 90, 180, 270), bold, underline, reverse,enlarge(1~6X)
Graphic	Graphic printing	Bitmap image download and direct bitmap image print
		RAM bitmap dowanload buffer size: 64KB
		FLASH bitmap download buffer size: 256KB
Paper	Paper type	Continuous paper, Marked paper
	Paper width	80±0.5 mm
	Paper thickness	0.06 ~ 0.08mm
	Paper out	Full cut, Partial cut, Tear off
	Paper roll OD	Max.80mm
Power supply	Input	AC 100~240V,50/60Hz
Power supply	Output	DC 24V,1.5A
Reliability	Print head lifetime	100 KM
Reliability	Cutter lifetime	1,000,000 cuts
Environment	Operation condition	5~45℃,20~90%RH(40℃)
Environment	Storage condition	-40~60℃,20~93%RH(40℃)
Dimension	Dimension	123(W)x158(D)x116(H)mm
Weight	Weight	Approx.0.75Kg
Standard	Certification	CCC, CE
