Product features
l 203×203PDI high quality printing
l Compact fashion design, 35% smaller than similar products
l 80mm width printing increases paper usage
l Modular mechanism can be installed and used as a panel printer
l Save paper up to 20% with paper saving mode
Item |

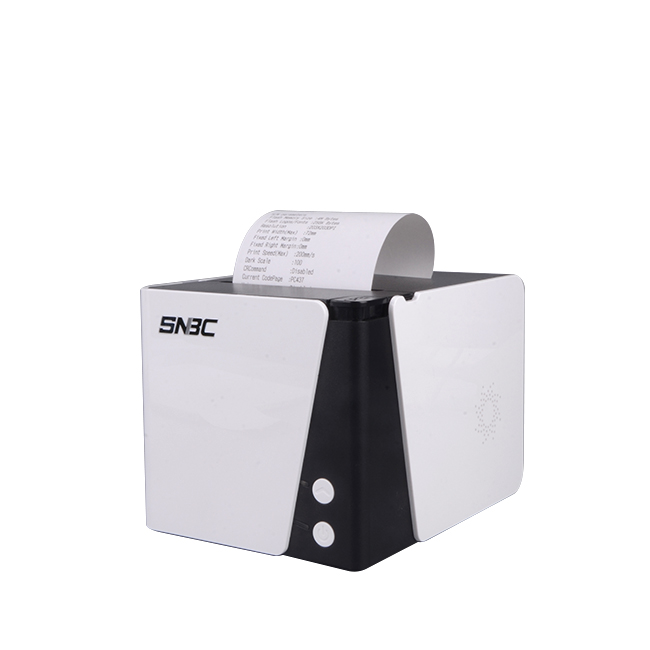

BTP-N80 |
|
Print method |
Direct thermal line printing |
|
Resolution |
203x203DPI |
|
Print width |
Max. 72mm |
|
Print speed |
Max. 200mm/s |
|
Memory |
4MB Flash |
|
Sensor |
Photoelectric sensor |
|
Cash drawer control |
1 cash drawer |
|
Interface |
USB, USB+WIFI, USB+Serial+Bluetooth, USB+Ethernet |
|
Barcodes |
One-dimensional barcode |
JAN8(EAN8), JAN(EAN13), ITFUPC-A, UPC-E, CODE 39, CODE 93, CODE 128, CODABAR |
Character set |
USA, France, Germany, UK, Denmark I, Denmark II, Italy, Sweden, Spain I, Spain II, Japan, Norway, Latin America, Korea, Japanese, Chinese, GB18030, GB2312 |
|
Fonts |
Font A(12×24), Font B(9×17), Kanji Font(24×24) |
|
Paper |
Paper type |
Continuous paper, Marked paper |
Paper thickness |
0.06~0.08mm |
|
Paper roll width |
80±0.5mm |
|
Paper roll OD |
Max.83mm |
|
Paper cut |
Full cut, Partial cut, Tear off |
|
Power supply |
Input |
AC 100~240V, 50/60Hz |
Output |
24V, 2.5A |
|
Reliability |
Print head lifetime |
100km |
Cutter lifetime |
1,000,000 cuts |
|
Environment |
Operation condition |
5~45ºC, 20~90%RH(40ºC) |
Storage condition |
-40~60ºC, 20~93% RH(40ºC) |
|
Physics Spec. |
Dimensions |
126(W)×160.5(L)×116.5(H)mm |
