Kiosk Printer

MAX.104mm Kiosk Printer

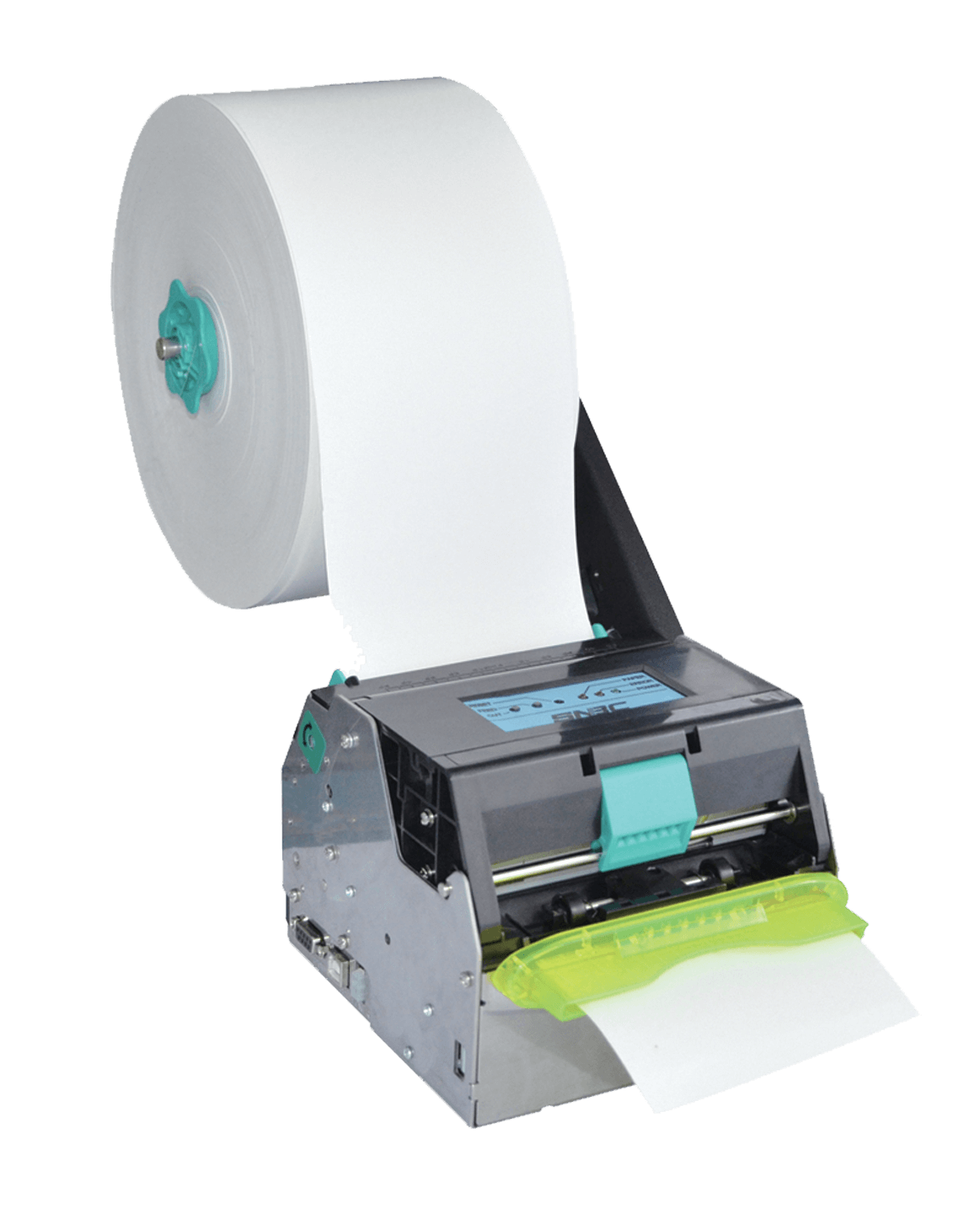

BK-T6112

Product Specifications

Specification	ltem	Relevant Data
Print	Print method	Direct thermal printing
	Resolution	203 DPI
	Print width	Max.104mm
	Print speed	203 DPl: 1ST:200mm/s 300 DPl: 1ST: 150mm/s 203 DPl: 2ST:100mm/s 300 DPl: 2ST:75mm/s
	Memory	FLASH:2MB (4MB); SDRAM: 8MB
	Interface	Standard: USB+Serial
Barcode Font	Barcode	1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 39, Code 93, Code128, ITF, Codabar 2D: PDF417, QR, GS1-DataBar
Barcode Font	Font	Standard ASCll(12x24), Compressed ASCll(9x17), Traditional/simplified Chinese,enlarge(1~6X), rotate(0, 90,180, 270), bold, white/black reverse, underline, upside-down
Paper	Paper type	Continuous paper, Marked paper, 2ST paper
	Paper width	79.5~112±0.5 mm
	Paper thickness	0.055~0.15mm
	Paper roll OD	Max.260mm
	Paper roll ID	18~60mm
	Paper out	Full cut, Partial cut
Presenter	Paper out mode	Paper holding/paper retraction/paper ejection
	Paper retraction speed	1000 mm/s
	Paper out speed	600-1000mm/s
Optional module	Optional module	Presenter, cantilever amm, Bezel with LED, Bezel color optional of yellow/green
Power supply	Input	AC 100-240V, 50/60Hz
Power supply	Output	DC 24V,6.25A
Reliability	Print head lifetime	100 KM
Reliability	Cutter lifetime	300,000 cuts
Environment	Operation condition	0~50℃,20~90%RH(40℃)
Environment	Storage condition	-40~60℃,20~93%RH(40℃)
Physics Spec.	Dimension	148(W)x 150(D)x122(H)mm(without paper holder)
Physics Spec.	Weight	Approx. 2Kg(without paper holder)
Standard	Certification	UL, FCC, CB, CE
