BK-T680_SNBC New Beiyang

Home > Printing and Scanning Products > Kiosk Printer > MAX.80mm Kiosk Printer

Kiosk Printer

MAX.80mm Kiosk Printer

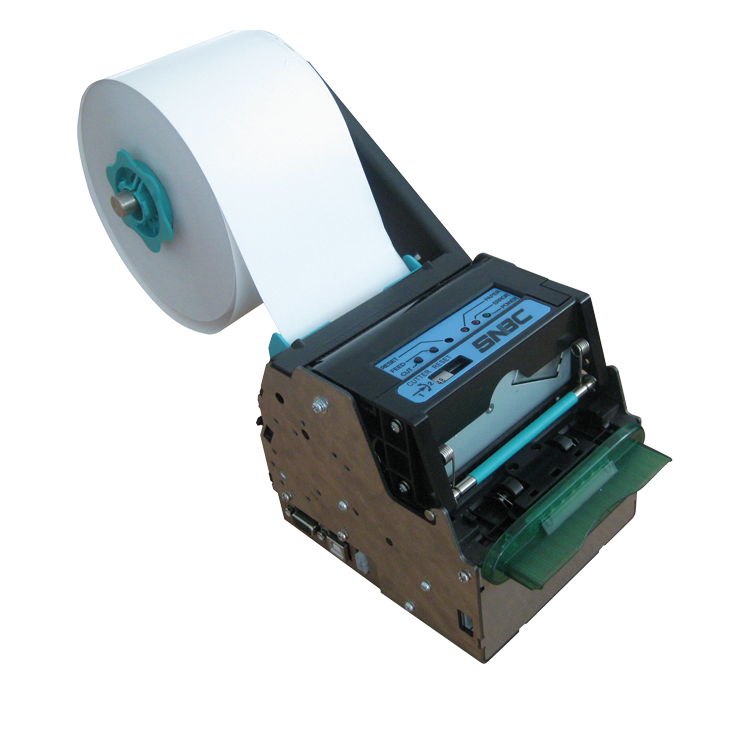

BK-T680

Product Specifications

Specification	ltem	Relevant Data
Print	Print method	Direct thermal printing
	Resolution	203/300 DPI
	Print width	Max.80mm
	Print speed	Single sided printing: Max.270mm/s Duplex printing: Max.150mm/s
	Memory	FLASH:2MB(4MB) SDRAM: 8MB(32MB)
	Interface	Standard: USB+ Serial Optional: USB+Ethernet
Barcode Font	Barcode	1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 39, Code 93, Code 128, ITF, Codabar 2D: PDF417, QR code, GS1-DataBar
Barcode Font	Font	Standard ASCll(12x24), Compressed ASCll(9x17), Traditional/simplified Chinese,enlarge(1 ~6X), rotate(0, 90, 180, 270), bold, white/black reverse, underline
Paper	Paper type	Continuous paper, Marked paper, 2ST paper
	Paper width	48~82.5mm
	Paper thickness	0.055~0.15 mm
	Paper roll OD	Max.300mm
	Paper roll ID	10~60mm
	Paper out	Full cut, Partial cut
Presenter	Paper out mode	Paper holding/paper retraction/paper ejection
	Paper retraction speed	1000mm/s
	Paper out speed	600-1000mm/s
Optional module	Optional module	Presenter, cantilever arm, Bezel with LED, Bezel color optional of green/blue
Power supply	Input	AC 100-240V, 50/60Hz
Power supply	Output	DC 24V, 2.5A
Reliability	Print head lifetime	150 KM
Reliability	Cutter lifetime	1,000,000 cuts
Environment	Operation condition	0~50℃,20~90%RH(40℃)
Environment	Storage condition	-40~60℃,20%~93%RH(40℃)
Physics Spec.	Dimension	117(W)x138(D)x121(H)mm(wthout paper holder)
Physics Spec.	Weight	Approx. 1.7Kg(without paper holder)
Standard	Certification	UL, FCC, CB, CE
