Kiosk Printer

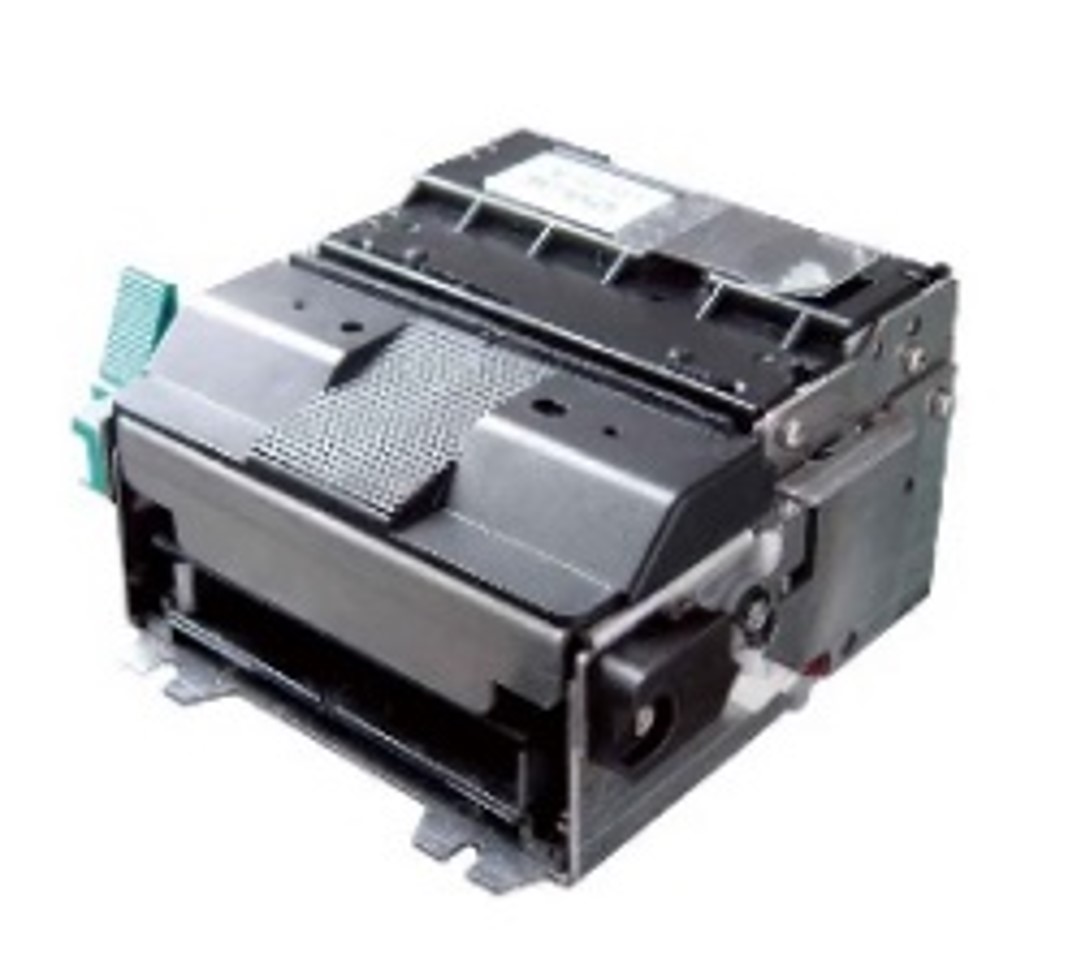

MAX.56mm Kiosk Printer

BT-T056

Product Specifications

Specification	ltem	Relevant Data
Print	Print method	Direct thermal printing
	Resolution	203 DPI
	Print width	Max.56mm
	Print speed	Max.150mm/s
	Memory	FLASH: 2MB(4MB); SDRAM: 2MB
	Interface	Serial, Parallel, USB
Barcode Font	Barcode	1D: UPC-A, UPC-E, EAN-8, EAN-13,Code 39,Code 93, Code 128, ITF, Codabar 2D: PDF417, QR code, GS1-DataBar
Barcode Font	Font	Standard ASCll(12x24), Compressed ASCll(9x17), Traditional/simplified Chinese,enlarge(1~6X),rotate(0, 90, 180, 270),bold, white/black reverse, underline
Paper	Paper type	Continuous paper, Marked paper
	Paper width	48/56/58/600 ± 0.5mm
	Paper thickness	0.06~0.10mm
	Paper roll OD	Max.254mm
	Paper roll ID	Min.15mm
	Paper out	Full cut, Partial cut
Presenter	Paper out mode	/
	Paper retraction speed	/
	Paper out speed	/
Optional module	Optional module	Bezel with LED module
Power supply	Input	AC 100-240V, 50/60Hz
Power supply	Output	DC 24V, 2.5A
Reliability	Print head lifetime	100 KM
Reliability	Cutter lifetime	1,000,000 cuts
Environment	Operation condition	0~50℃,20~90%RH(40℃)
Environment	Storage condition	-40~60℃,20%~93%RH(40℃)
Physics Spec.	Dimension	95(W)x102(D)x54(H)mm(print mechanism)
Physics Spec.	Weight	Approx.0.42Kg(without paper holder)
Standard	Certification	CE
