Kiosk Printer

MAX.216mm Kiosk Printer

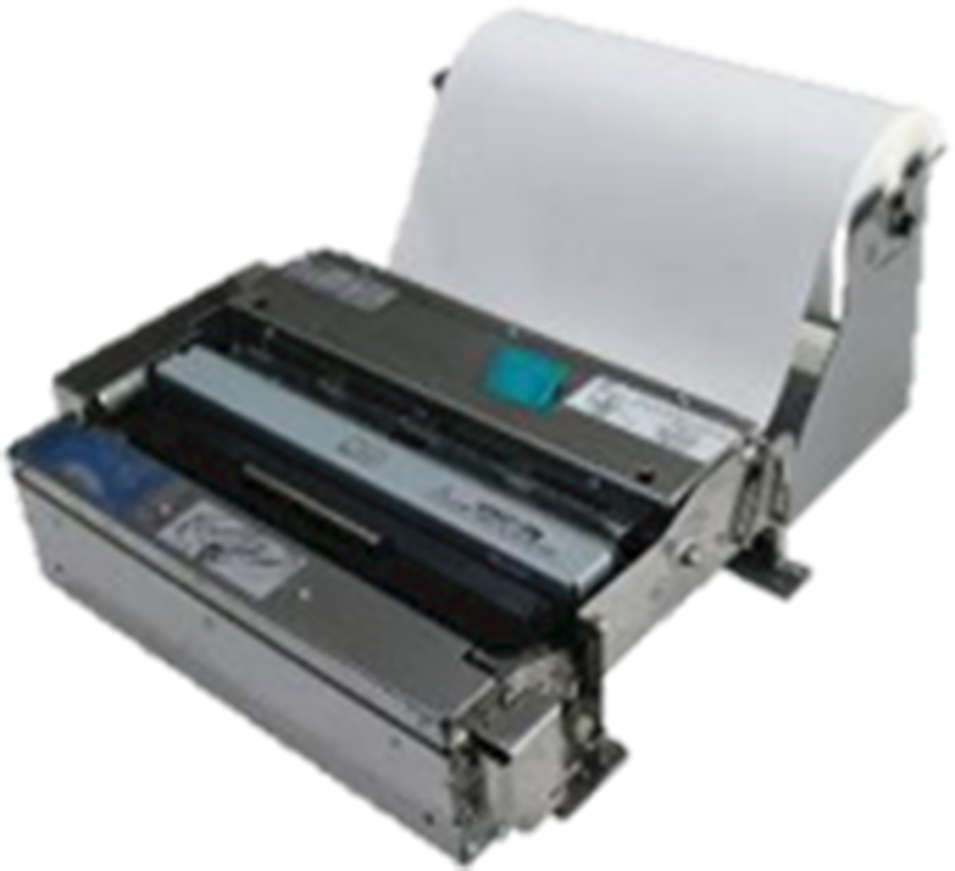

BK-L216II

Product Specifications

Specification	ltem	Relevant Data
Print	Print method	Direct thermal printing
	Resolution	203/300DPI
	Print width	Max.216mm
	Print speed	203 DPl:Max.125mm/s 300 DPl:Max.100mm/s
	Memory	FlaSh:1MB(2MB/4MB); SDRAM:8MB
	Interface	Standard: USB+Serial
Barcode Font	Barcode	1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 39, Code 93, Code 128,ITF, Codabar 2D: PDF417, QR, GS1-DataBar
Barcode Font	Font	Standard ASCll(12x24), Compressed ASCll(9x17), Traditional/simplified Chinese,enlarge(1~6X),rotate(0, 90, 180, 270),bold, white/black reverse, underline, upside-down
Paper	Paper type	Continuous paper, Marked paper, Folded paper
	Paper width	210~216±0.5mm
	Paper thickness	0.06~0.1mm
	Paper roll OD	Max.203mm
	Paper roll ID	25.4mm or 50mm
	Paper out	Full cut
Presenter	Paper out mode	Paper holding/paper retraction/paper ejection
	Paper retraction speed	400mm/s
	Paper out speed	400mm/s
Optional module	Optional module	/
Power supply	Input	AC 100-240V, 50/60Hz
Power supply	Output	DC 24V,4.17A
Reliability	Print head lifetime	100 KM
Reliability	Cutter lifetime	500,000 cuts
Environment	Operation condition	5~45℃,20~90%RH(40℃)
Environment	Storage condition	-40~60℃,20%~93%RH(40℃)
Physics Spec.	Dimension	293W)x207(D)x88(H)mm(without paper holder)
Physics Spec.	Weight	Approx.4.4Kg(without paper holder)
Standard	Certification	UL, FCC, CB, CE
