Label Printer

MAX.104/106mm Label Printer

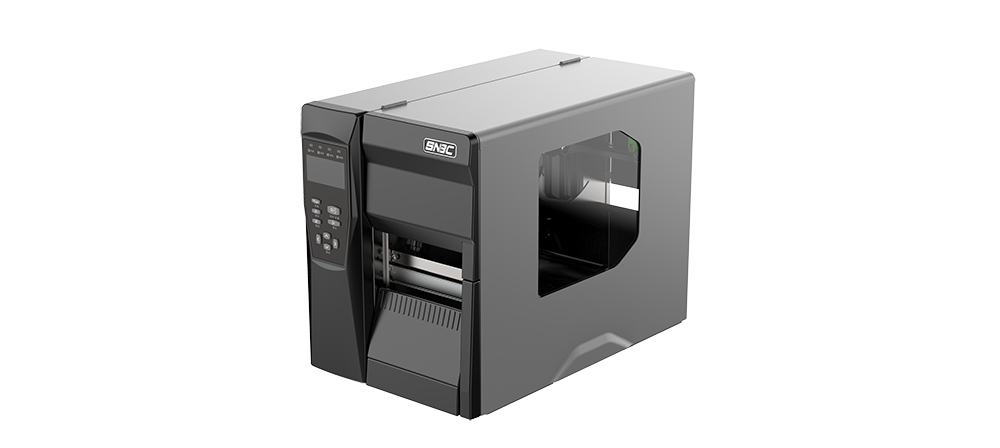

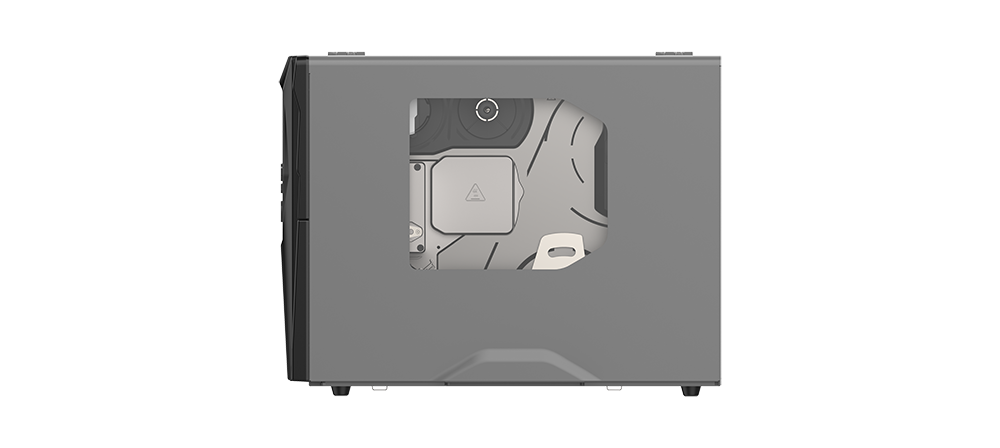

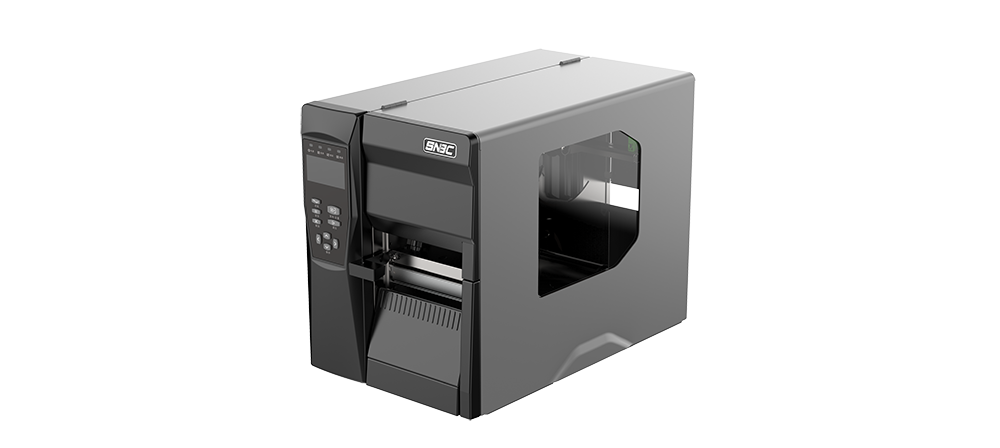

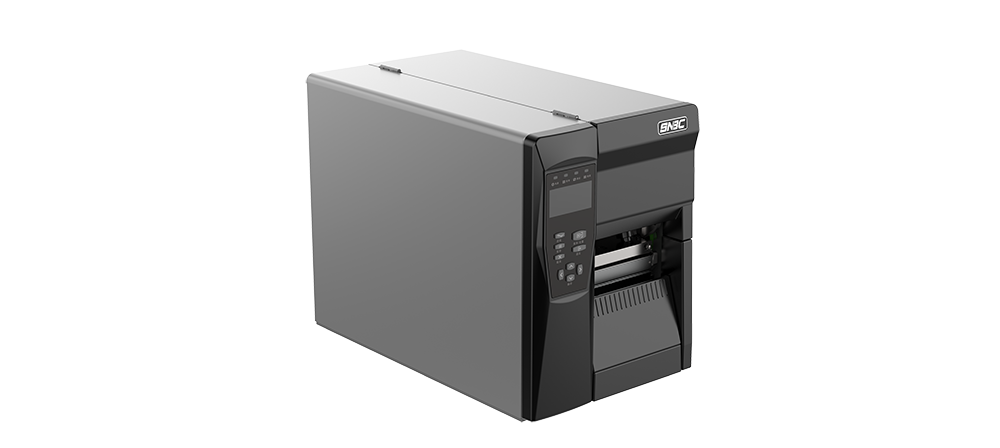

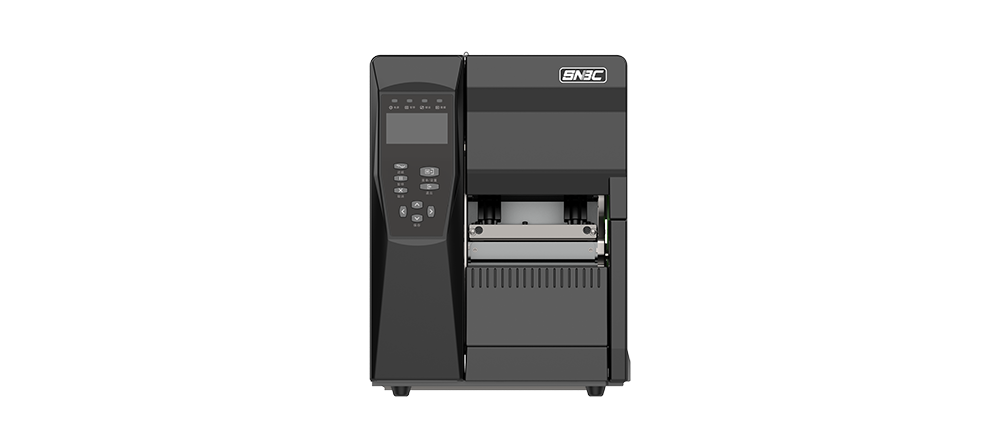

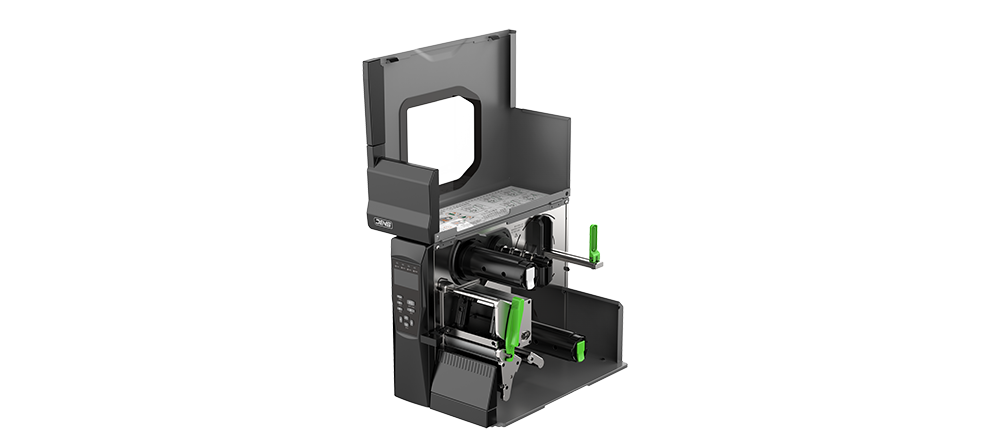

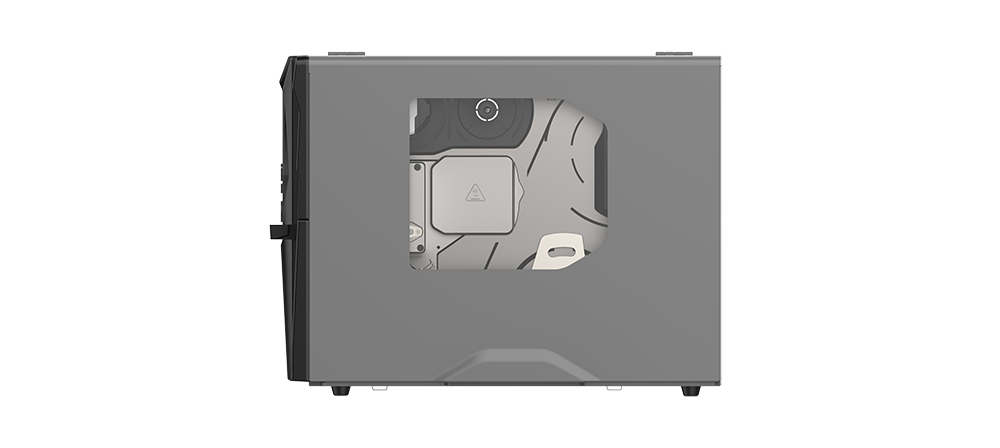

BTP-7400

152mm/s high-speed printing
Innovative and compact design, user-friendly operation
With large memory (64MB SDRAM) to preload more bitmaps
Support BPLT, BPLZ, and BPLE programming languages

Product Specifications

Specification	ltem	Relevant Data
Print	Print method	Direct thermal/Thermal Transfer printing
	Resolution	203 DPI	300 DPI
	Print width	Max.104mm	Max.106mm
	Print speed	Max.305mm/s	Max.203mm/s
	Memory	FLASH:256MB,SDRAM:256MB
	Sensor	Paper end sensor, Label gap sensor, Black mark sensor, Coveropening sensor, TPH voltage sensor, TPH overheating sensor,Ribbon detection sensor
	Button LED,LCD	9 buttons, 4 LEDs, 1 LCD
	Interface	Standard: Serial+ Parallel+ USB(Type B)+USB(Type A)+Ethernet
Barcode Font Graphic	1D Barcode	Code 39, Code 93, Codabar, Code 128(Subsets A, B and C), UPC-A,UPC-E, EAN-8, EAN-13, UPC/EAN Extensions, Planet Code, Standard2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, GS1 Databar
	2D Barcode	PDF417, Micro PDF417, QR Code, DataMatrix, Maxicode, GS1 Composite
	Graphic printing	Binary unformatted bitmap, HEX, PCX, BMP and IMG bitmap can bedownloaded to FLASH or RAM
	Character set	FONTO~FONT8, 6 kinds of ASD smooth fonts, 8 kinds of Courier fontsUser-defined fonts can be downloaded to the FLASH or SDRAM
	Character modification	Rotate(0°, 90°，180°,270°),Enlarge(1~8x)
Paper	Paper type	Label Paper, Continuous paper, Folded paper, Marked paper, Washing LabelPerforated paper
	Paper width	Max.80mm
	Paper roll ID	38~76.2mm
	Paper roll OD	Max.203mm
	Paper thickness	0.06~0.3mm
Power supply	Input	AC 100~240V,50~60Hz
	Output	DC 24V,4.5A
Environment	Operation condition	5~45℃,20~90%RH(40℃)
	Storage condition	-40~60℃,20~93%RH(40℃)
Physics Spec.	Dimension	280(W)x480(D)x370(H)mm
	Weight	Approx.19Kg
Standard	Certification	CCC, UL, FCC, CB, CE
