Label Printer

MAX.104/105.6/105.7Label Printer

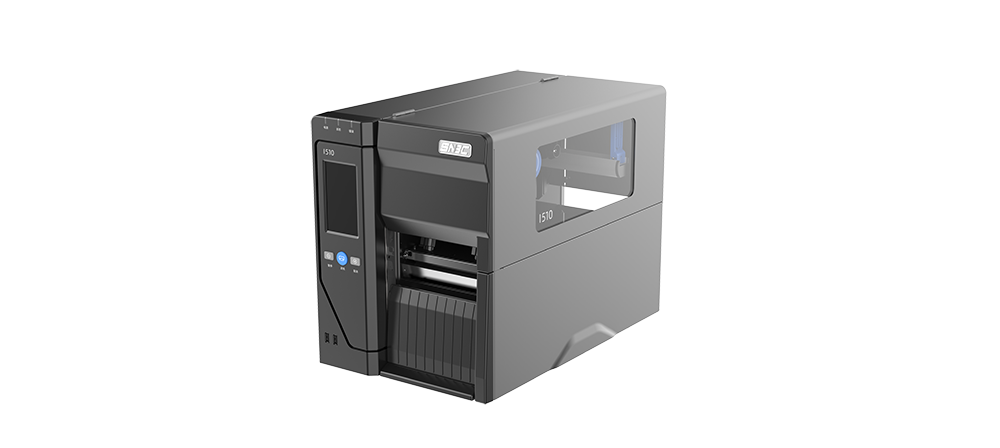

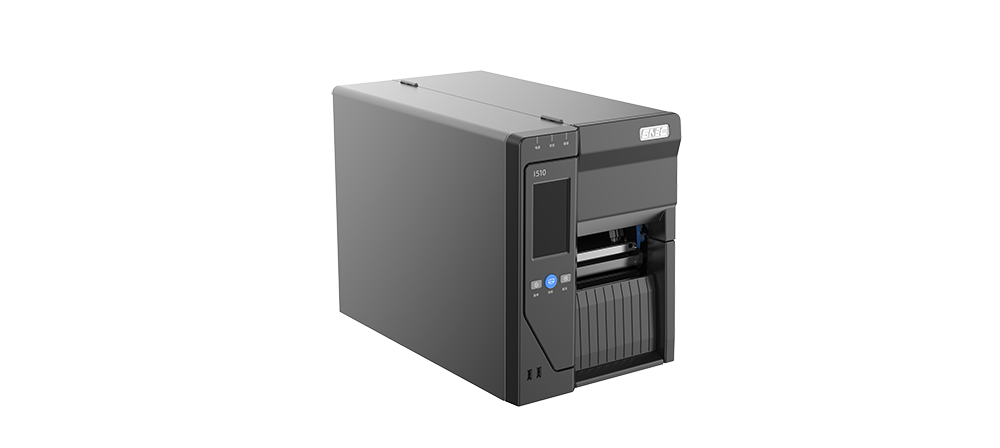

BTP-i510

High resolution, up to 600 DPl
High reliability and high stability, 7x24 hours of continuous work
Support RFlD printing
Easy operation, easy paper-loading, humanistic operational interface
With abundant expansion functions, and built-in
Linux operating system
Firmware can be updated by USB stick

Product Specifications

Specification	ltem	BTP-I510 (203DPI)	BTP-I510 (300DPI)	BTP-I510 (600DPI)
Print	Print method	Direct thermal/Thermal transfer printing	Direct thermal/Thermal transfer printing	Direct thermal/Thermal transfer printing
	Resolution	203 DPI	300 DPI	600 DPI
	Print width	Max.104mm	Max.105.7mm	Max.105.6mm
	Print speed	Max.305mm/s	Max.254mm/s	Max.152mm/s
	Memory	FLASHL:8GB, SDRAM: 512MB
	Sensor	Paper end sensor, Label gap sensor, Black mark sensor, Cover opening sensor, TPH voltage sensor,TPH overheating sensor,Ribbon detection sensor, Peel off sensor
	Interface	Standard: USB(Type B)+3xUSB(Type A)+ Serial+ Ethernet Optional: Bluetooth, Wi-Fi
Barcode Font Graphic	BarcodeBarcode	ID:Code 39,Code 93, Codabar, Code 128(Sulbsets A,B, and C),EAN-13, EAN-8, UPC-A, UPC-E,UPC/EAN Extensions,Planet Code, Standard 2 of 5,Industrial 2 of5,Interleaved 2 of 5, LOGMARS, GS1 DataBar(RSS)
		2D: PDF 417, MicroPDF417, QR Code, DataMatrix, Maxicode, GS1 Composite
	Graphicsorinting	Binary unformatted bitmap, HEX,PCX,BMP and IMG files can be downloaded to FLASH or RAM
	Character setCharacter set	FONT A, FONT B, FONT D, FONT E, FONT F, FONT G, FONT H, FONT GS, FONT P, FONT Q FONT R, FONT S, FONT T, FONT U, FONT V, FONT 0
		User-defined fonts can be downloaded to the FLASH or SDRAM
	Character modification	Rotate (0°,90°,180°, 270°); Enlarge (1~8x)
Paper	Paper type	Label Paper, Continuous paper, Folded paper, Marked paper, Washing Label, Perforated paper
	Paper width	20~120mm
	Paper roll ID	Min.38mm(1 inch paper holder, optional); Max.76.2mm
	PaOer roll OD	Max.203mm
	Ribbor length	Max.600m
	Ribbon ID	25.4mm
	Paper output mode	Rewind, Tear off, Peel off, Paper cut
RFID	RFID standard	UItra High Frequency (UHF),compliant with the ISO/IEC 18000-6 Type C Gen2
Buzzer	Buzzer	Support
Power supply	Input	AC 100-240V, 50/60Hz
	Output	DC24V,4.5A
Environment	Operation condition	5~45℃,20~90%RH(40℃)
	Storage condition	-40~60℃,20~93%RH(40℃)
Physics Spec.	Dimension	282(W)x477(D)x372(H)mm
	Weight	Approx.19Kg
