Pos Printer

MAX.80mm Pos Printer

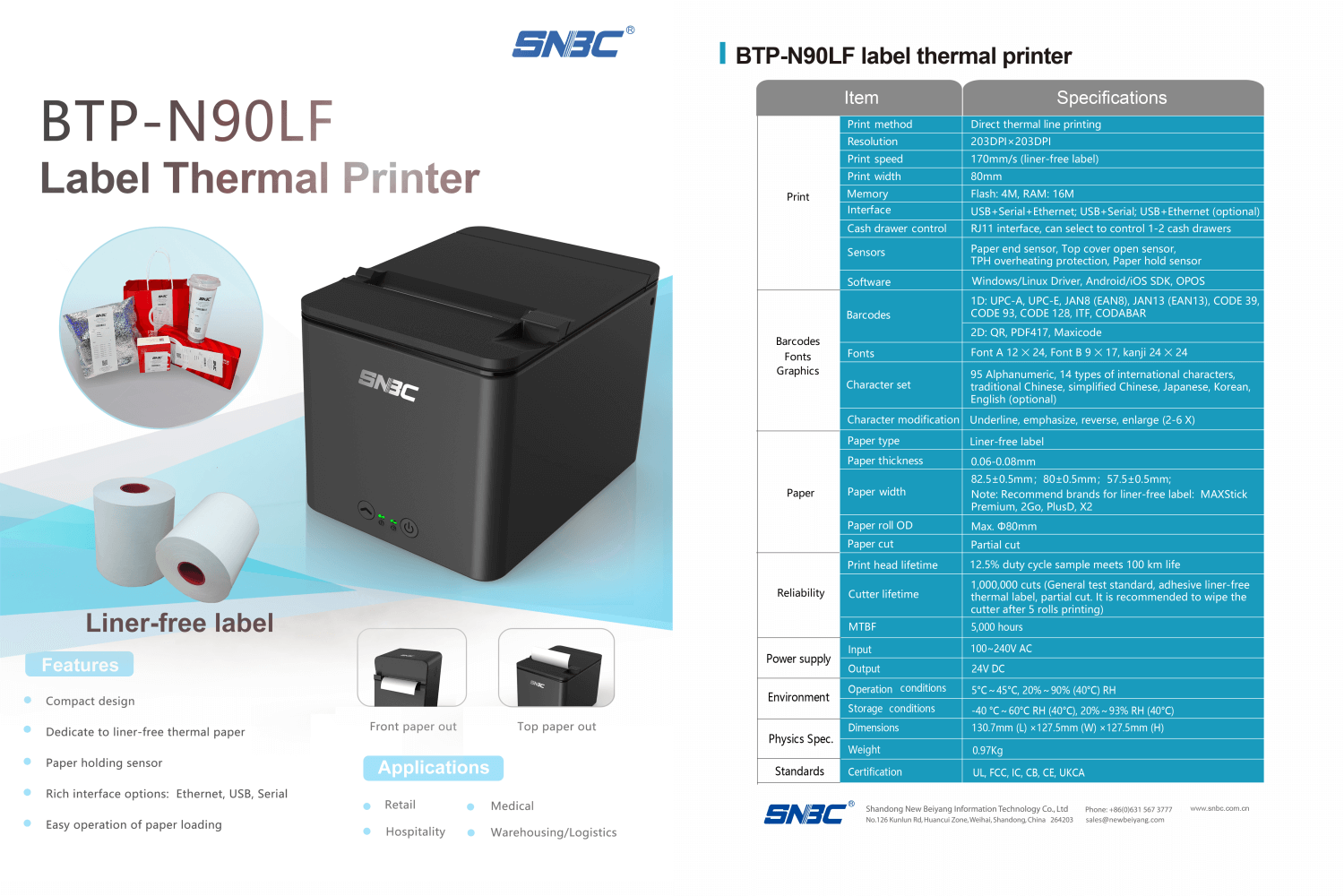

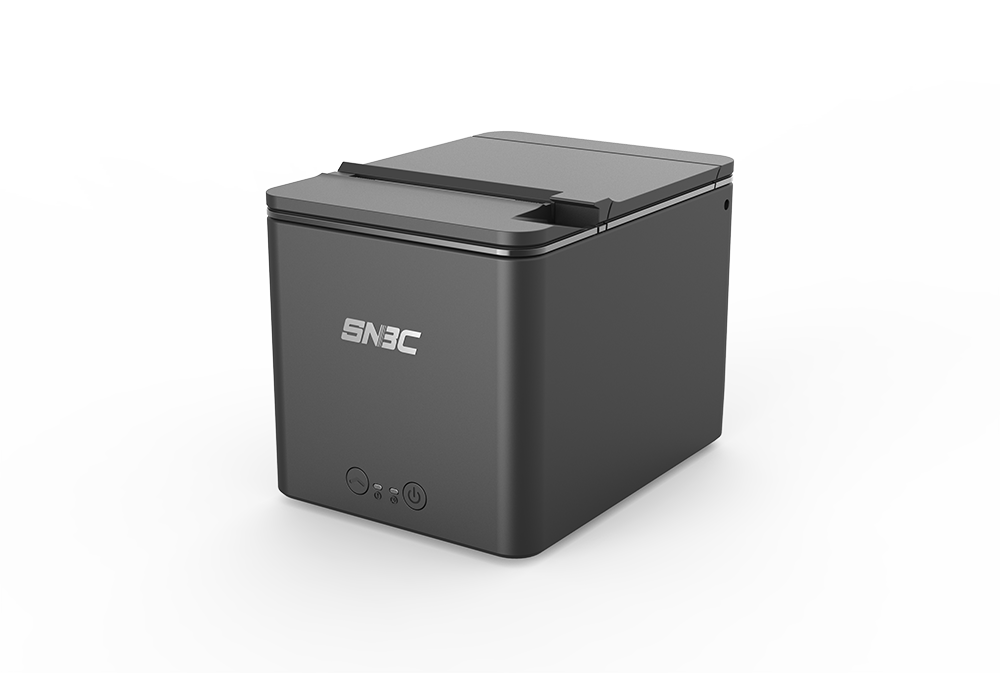

BTP-N90LF

Product Specifications

Specification	ltem	Relevant Data
Print	Print method	Direct thermal printing
	Resolution	203 DPI
	Print width	80mm
	Print speed	170mm/s(liner-free label)
	Interface	Standard:USB+Serial+Ethernet; Optional: USB+Serial, USB+Ethernet
	Cash drawer control	1~2 cash drawers
	Sensor	Paper end sensor, Cover opening sensor,TPH overheating sensor, Paper hold sensor
	Driver	Windows, MacOS, Linux
Barcode Font Graphic	Barcode	1D:UPC-A,UPC-E,EAN-8, EAN-13,Code 39, Code 93, Code 128, ITF, Codabar2D:QR code, PDF417, Maxicode
	Font	Standard ASCll(12X24),Compressed ASCll(9X17)
	Character set	95 Alphanumeric, 17 types of internationalcharacters Optional: Traditional/Simplified Chinese
	Character modification	Rotate(0°, 90°, 180°, 270°),underline, bold,reverse, enlarge(1~6 X)
Paper	Paper type	Liner-free label
	Paper thickness	0.06~0.10mm
	Paper width	57.5/80/82.5 ± 0.5mm
	Paper width	Recommend brands for liner-free label:MAX Stick Premium, 2Go, Plus D, X2
	Paper roll OD	Max.80mm
	Paper out	Partial cut
Reliability	Print head lifetime	100 KM
Reliability	Cutter lifetime	1,000,000 cuts
Power supply	Input	AC 100-240V,50/60Hz
Power supply	Output	DC 24V,2.5A
Environment	Operation condition	5~45℃,20~90%RH(40℃)
Environment	Storage condition	-40~60℃,20~93%RH(40℃)
Dimension	Dimension	128W)x126(D)x173mm(H)
Weight	Weight	Approx.0.97Kg
Standard	Certification	CCC, UL, FCC, CB, CE, Energy star, ICES, UKCA
