Pos Printer

MAX.80mm Pos Printer

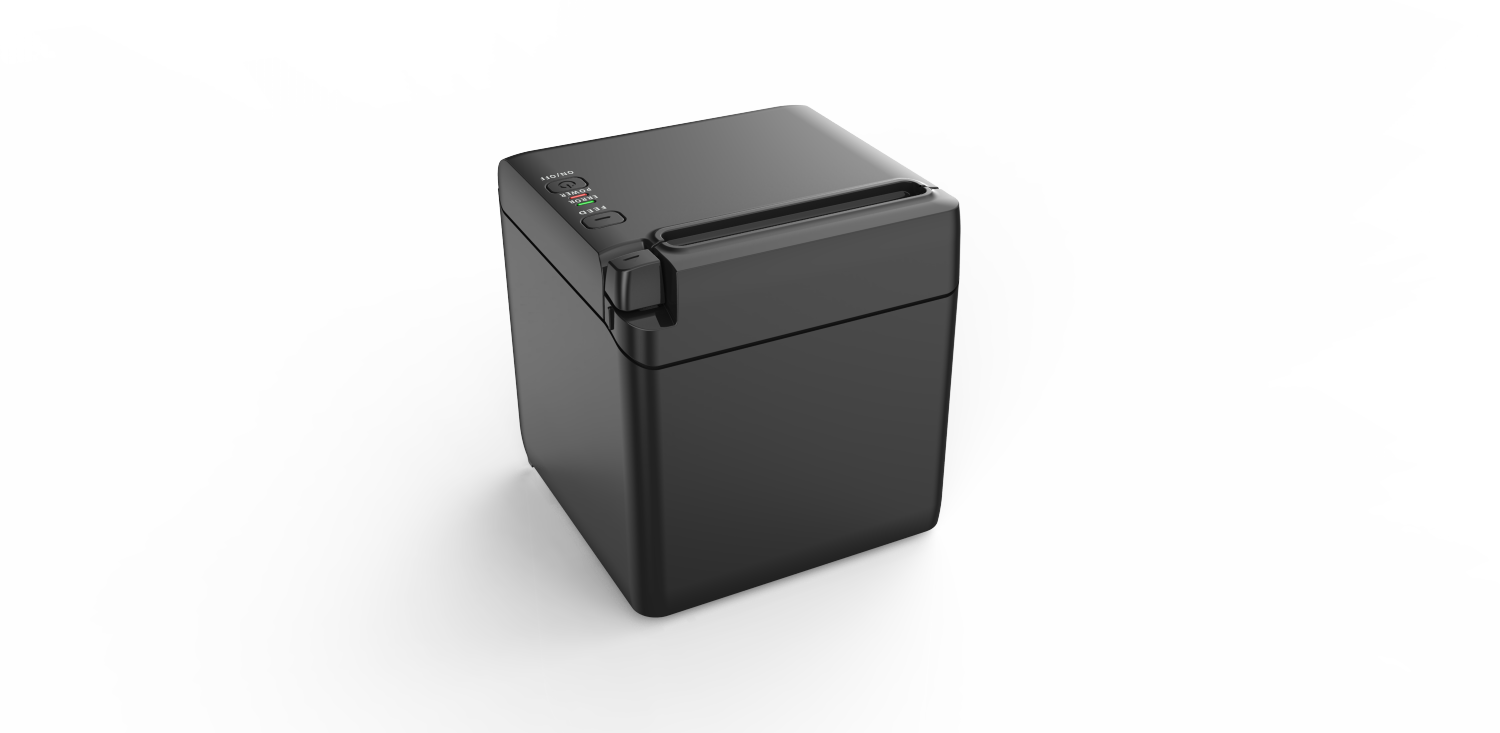

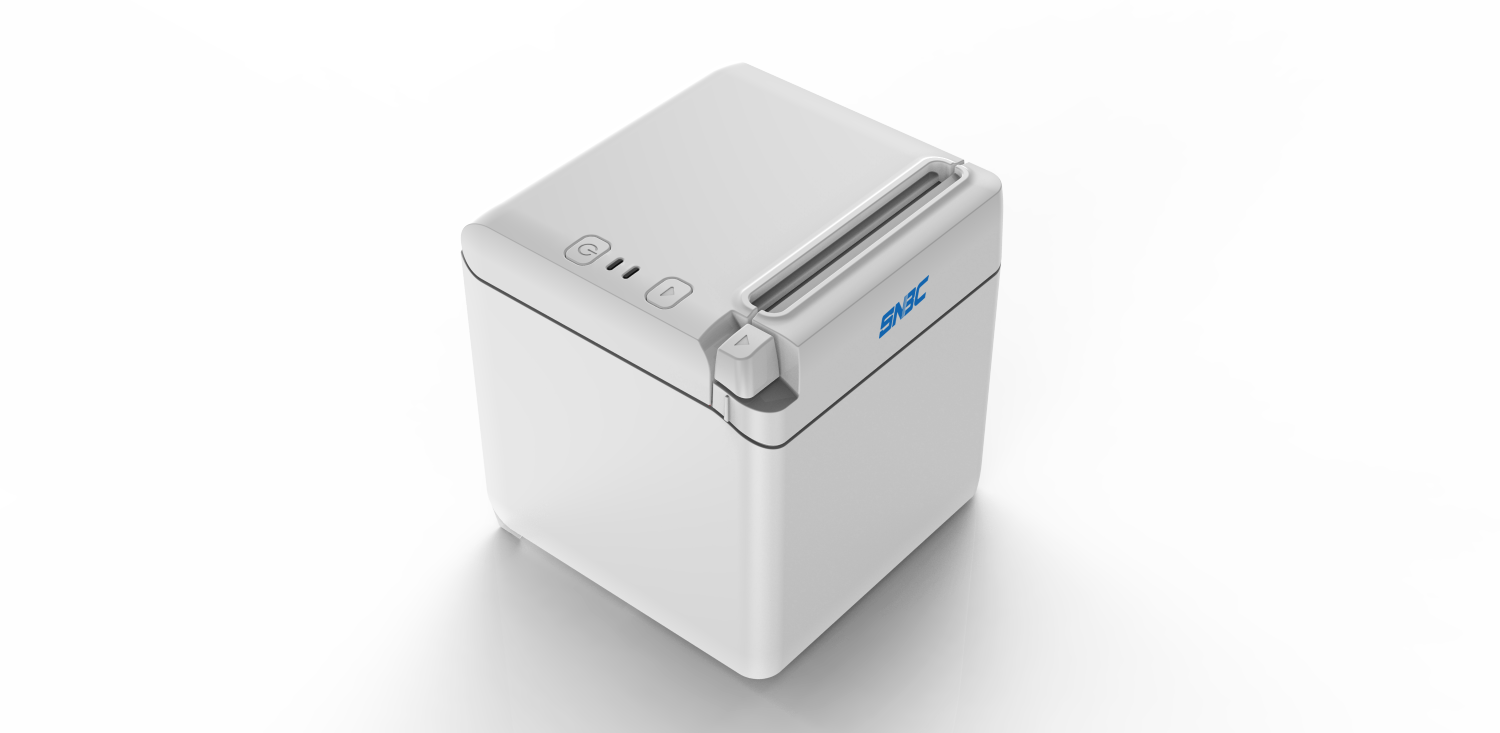

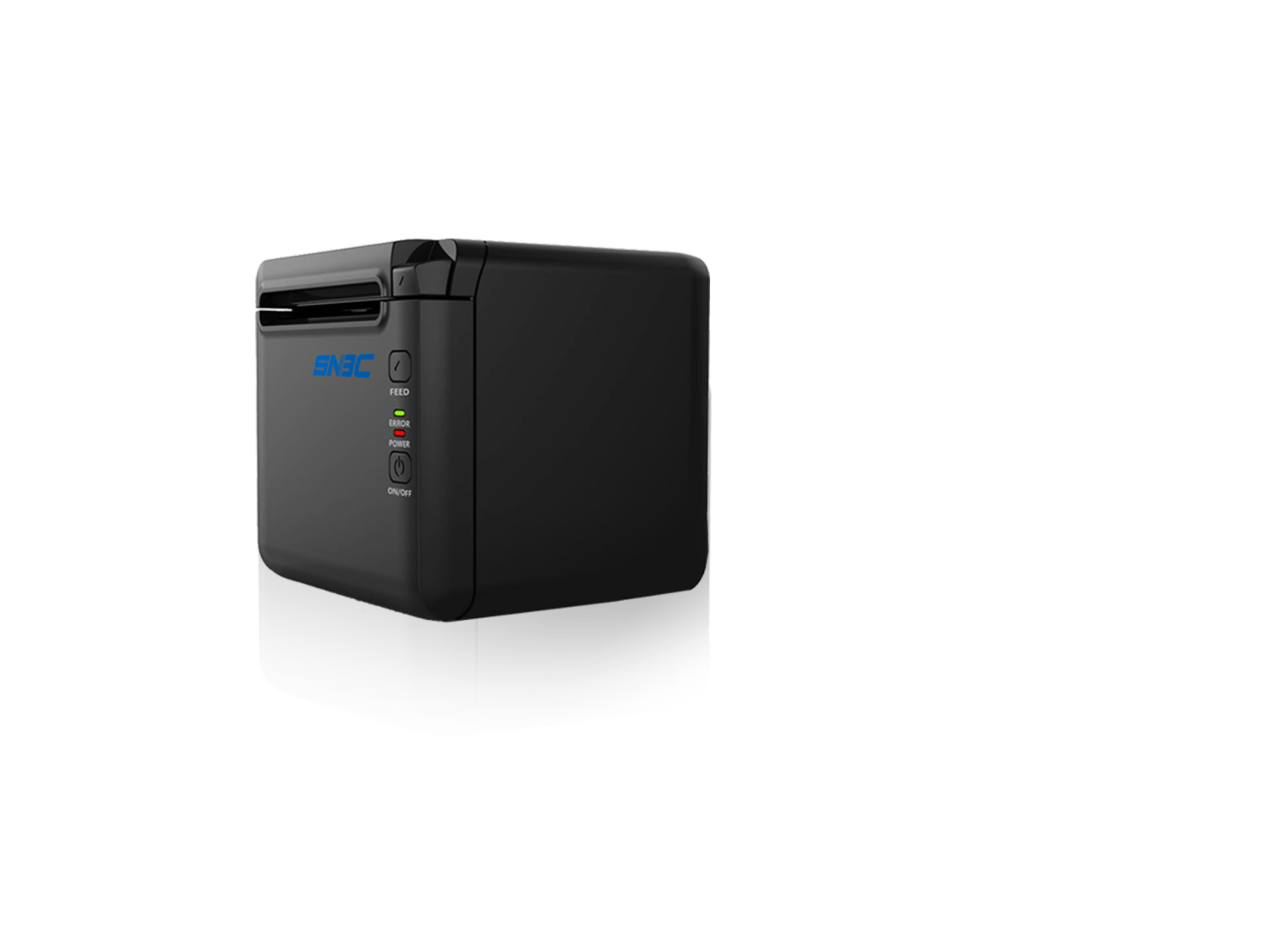

BTP-S80

250mm/s high-speed printing
Compact and kiosk-friendly, 45%smaller than similar products
Support top and front paper out
Easy paper loading
Adjustable paper near end sensor

Product Specifications

Specification	ltem	Relevant Data
Print	Print method	Direct thermal printing
	Resolution	203 DPI
	Print width	Max.80mm
	Print speed	Max.250mm/s
	Memory	FLASH: 4MB, SDRAM: 2MB
	Driver	Windows, MacOs, Linux
	Sensor	Paper end sensor, TPH voltage sensor, Cutter sensor,TPH overheating sensor, Cover opening sensor, Black mark sensor
	Interface	Standard: USB; Optional: Parallel, Serial, Ethernet, Wi-Fi, Bluetooth,Serial+ Ethernet
	Cash drawer control	1~2 cash drawers
Barcode	Barcode	1D:UPC-A, UPC-E, EAN-8, EAN-13, Code 39, Code 93,Code 128, ITF, Codabar
Barcode	Barcode	2D: QR code, PDF417, Maxicode, GS1 DataBar
Font	Font	Standard ASCll(12X24),Compressed ASCll(9X17),Traditional/Simplified Chinese
	Character set	95 Alphanumeric,17 types of international charac-ters,128x57 Graphic(including user-defined page)Optional: Traditional/Simplified Chinese, Japanese, Korean
	Character modification	Rotate(0, 90,180, 270),bold, underline,reverse,enlarge(1~6X)
Graphic	Graphic printing	Bitmap image downloading and direct bitmap image print
		RAM bitmap download buffer size: 128KB
		FLASH bitmap download buffer size: 512KB
Paper	Paper type	Continuous paper, Marked paper
	Paper width	57.5/80/82.5 ± 0.5 mm
	Paper thickness	0.06~0.10mm
	Paper out	Full cut, Partial cut, Tear off
	Paper roll OD	Max.83mm
Power supply	Input	AC 100~240V,50/60Hz
Power supply	Output	DC 24V, 2A
Reliability	Print head lifetime	150 KM
Reliability	Cutter lifetime	2,000,000 cuts
Environment	Operation condition	5~45℃,20~90%RH(40℃)
Environment	Storage condition	-40~60℃,20~93%RH(40℃)
Dimension	Dimension	127(W)x127(D)x134(H)mm
Weight	Weight	Approx. 1.1Kg
Standard	Certification	CCC, UL, FCC, CB, CE, Energy Star, RCM, ICES, BSMI, UKCA
