Cash Modules

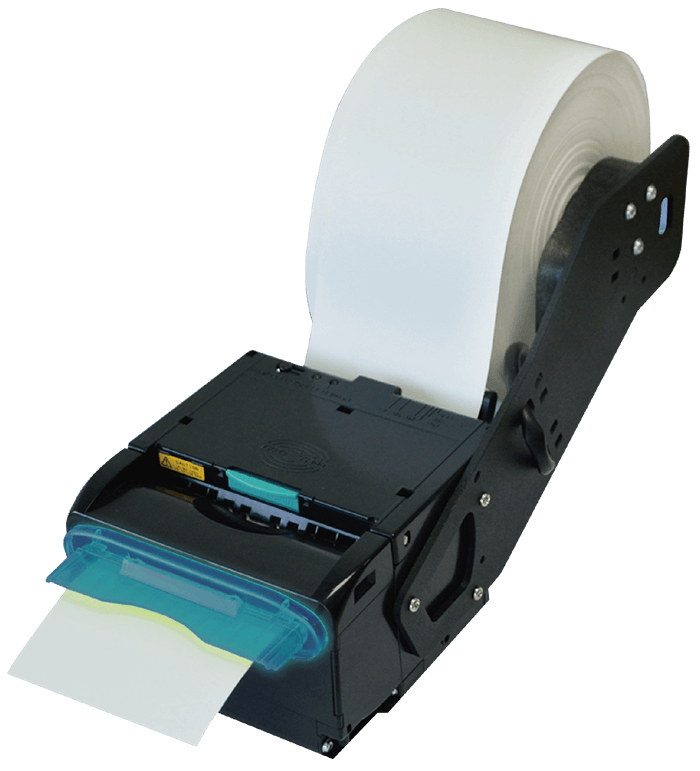

Embedded Printer
BK-C310
Small footprint
Anti-jam and anti-pull function
Specially designed for unattended printing applications
High-speed printing (230mm/s)
With capacity to drive up to 300mm paper roll
Auto paper loading/auto cutter
Modular design, easy to use and maintain
Product Specifications
| Specification | Relevant Data |
| Print method | Direct thermal line printing |
| Resolution | 203DPIx203DPI |
| Print speed | 150~230mm/s |
| Barcode type | UPC-A, UPC-E, EAN-8, EAN-13, Code 39, Code93, Code 128, ITF, Codabar |
| Font | Font A(12x24), Font B(9x17), Kanji Font(24x24) |
| Paper roll OD | Max. 300mm |
| Paper roll width | 48~82.5mm |
| Paper out speed | Max.600mm/s |
| Paper retraction speed | Max.600mm/s |
| MTBF | 360,000 hours |
| MCBF | 7,000,000 lines |
| Certificate | CE,CB,FCC,UL |
