Cash Modules

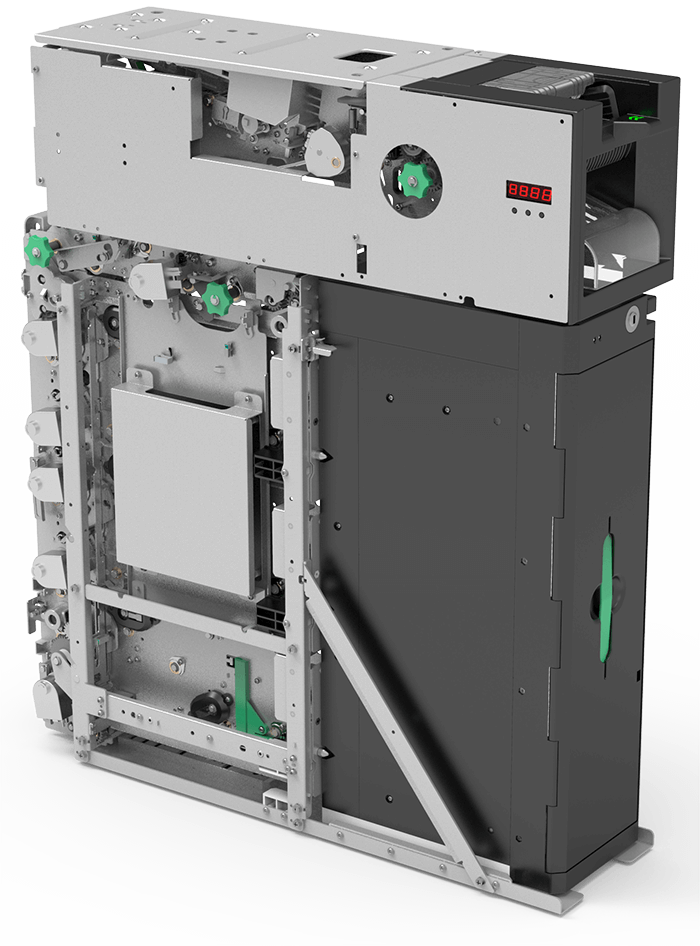

Mini Cash Recycler
BNE-R10
Compact and high-speed cash recycler, purpose-built for retail environ-ments to maximize efficiency in limited space
Modular design with independent cash validating and cassette(drum)modules, ensuring easy maintenance and serviceability
Multiple interface options and safe configurations, offering high flexibil-ity and scalability for diverse customer needs
Product Specifications
| Specification | Relevant Data |
| Deposit module | Cash-in capacity: 50 notes (standard); 200 notes (optional) |
| Cash-out capacity: 20 notes | |
| Deposit speed: 5 notes/s | |
| Dispense speed: 4 notes/s (without BV), 2notes/s(with BV) | |
| Cassette | Recycling cassette: Max. 3 cassettes, each with 2drums (60 notes per drum) |
| Acceptance cassette:3, 000 notes | |
| Loading cassette: 500 notes | |
| Counterfeit note cassette: 30 notes | |
| Safe | Optional 2/6/8mm metal plate, Compliant withUL291,CEN IV standard |
| Communication ports | 1 Ethernet port, 1 USB 2.0 port, 1 RS232 port/RS485 |
| Power supply | 100V~242V, 50Hz/60Hz (optional, achieved viacompatible power adapter) |
| Dimensions | 600(D)x160(W)x680(H)mm |
