Cash Deposit Machine

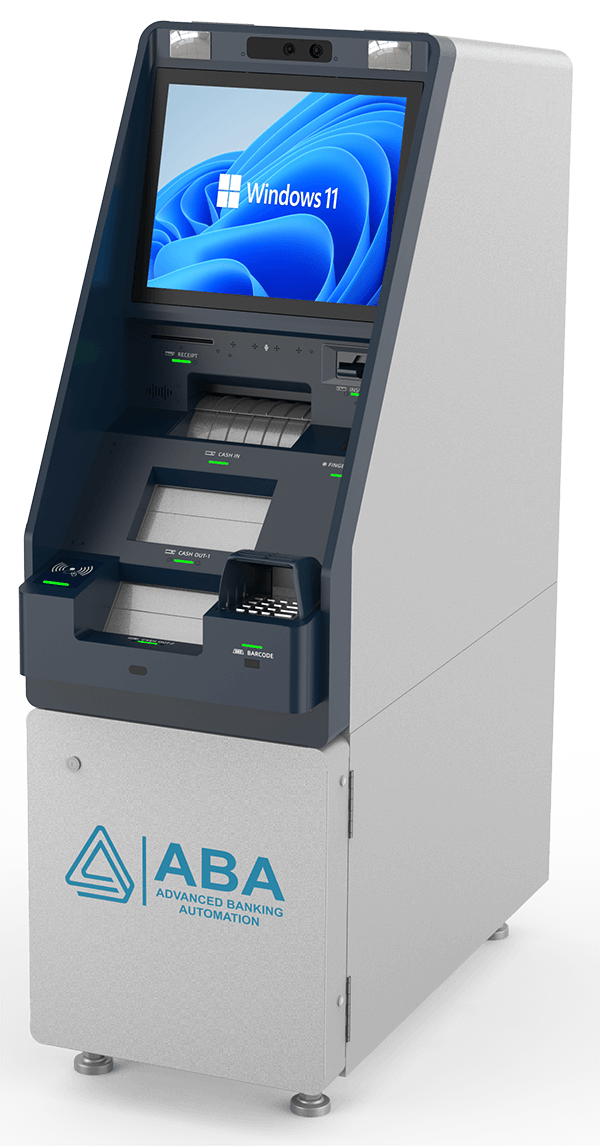

BDM-600

Using cassettes instead of cash bag, it's convenient to use
Designed in accordance with ATM standards, components compliant withEMV I, EMV Il, PCI certification requirements
NDC application

Product Specifications

Specification	Relevant Data
Deposit module	Cash-in capacity: 500 notes
	Cash-out capacity: 300 notes
	Escrow capacity: 300 notes
	Speed: 12 notes/s
Safe	UL291 standard
Cassette	5 acceptance cassettes Each capacity is 3400 notes
PC	15, 4GB, 1TB HDDs, 4G and WIFI are optional, Windows 11
Touch screen	19"; Privacy protection; 7x24h
Earphone insert port	Support
Speaker	Support
Microphone	Standard; 4-arrayed microphone
UPS	Optional, back up 15 minutes or support an entire
Face camera	1920x1080
Human approaching	Support
Cash slotcamera	1920x1080 Can photograph: cash-in; rejection slot; escrow
Receipt printer	3" thermal printer
Fingerprints scanner	Standard: SECUGEN Hamster Pro 20, liveness testing
Barcode reader	Optional
NFC	Optional, support master card and visa card
Card reader	Optional, support EMV certificate
EPP	Optional, support PCI certificate; Braille; English version
Dimensions	475(W)x1038(D)x1475(H)mm
Weight	480Kg
