Label Printer

MAX.72mm Label Printer

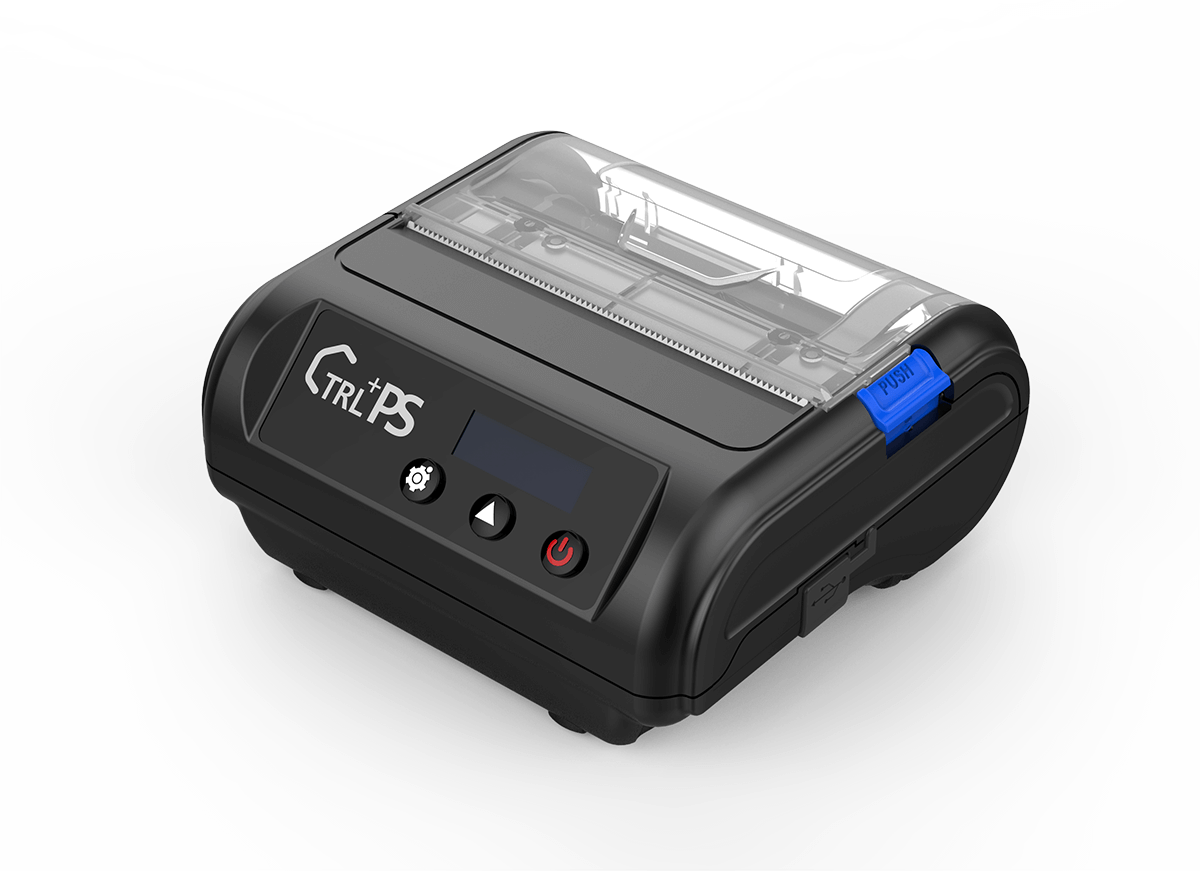

BTP-P32

Product Specifications

Specification	ltem	Relevant Data
Print	Print method	Direct thermal printing
	Resolution	203 DPI
	Print width	Max.72mm
	Print speed	Max.76mm/s
	Print length	10~380mm
	Memory	Flash:4MB(8MB), RAM:8MB
	Interface	USB+Bluetooth 4.0
Barcode Font Graphic	Barcode	1D: UPC-A, UPC-E, Code 93, Codabar, Code 39,Code 128, EAN-8, EAN-13, ITF
	Barcode	2D:PDF417, QR Code, Maxicode, GS1 DataBar
	Character set	User-defined fonts can be downloaded to the FLASH or SDRAM
Paper	Paper type	Label paper, Continuous paper, Marked paper
	Paper thickness	0.06~0.16mm
	Paper roll ID	Max.38mm
	Paper width	Max.80mm
	Paper cut	Tear off
Battery	Battery capacity	Li-polymer, 1400mAh,rechargeable
Battery	Charging time	2.5~3 hours
Power supply	Input	AC 100~240V,50~60Hz
Power supply	Output	DC 12V 1A
Protection	Splash and dustproof	IP42 (with Nylon soft case can reach IP54)
Protection	Drop test	1.7m
Reliability	Print head lifetime	50 KM
Environment	Operation condition	-10℃~50℃,20~90%RH(40℃)
Environment	Storage condition	-25℃~60℃,5~95%RH(40℃)
Physics Spec.	Dimension	105(W)x109(D)x51(H)mm
Physics Spec.	Weight	Approx.0.33Kg
Standard	Certification	CCC, FCC, CB, CE
