BTP-3200E/3300E_SNBC New Beiyang

Home > Printing and Scanning Products > Label Printer > MAX.108/106mm Label Printer

Label Printer

MAX.108/106mm Label Printer

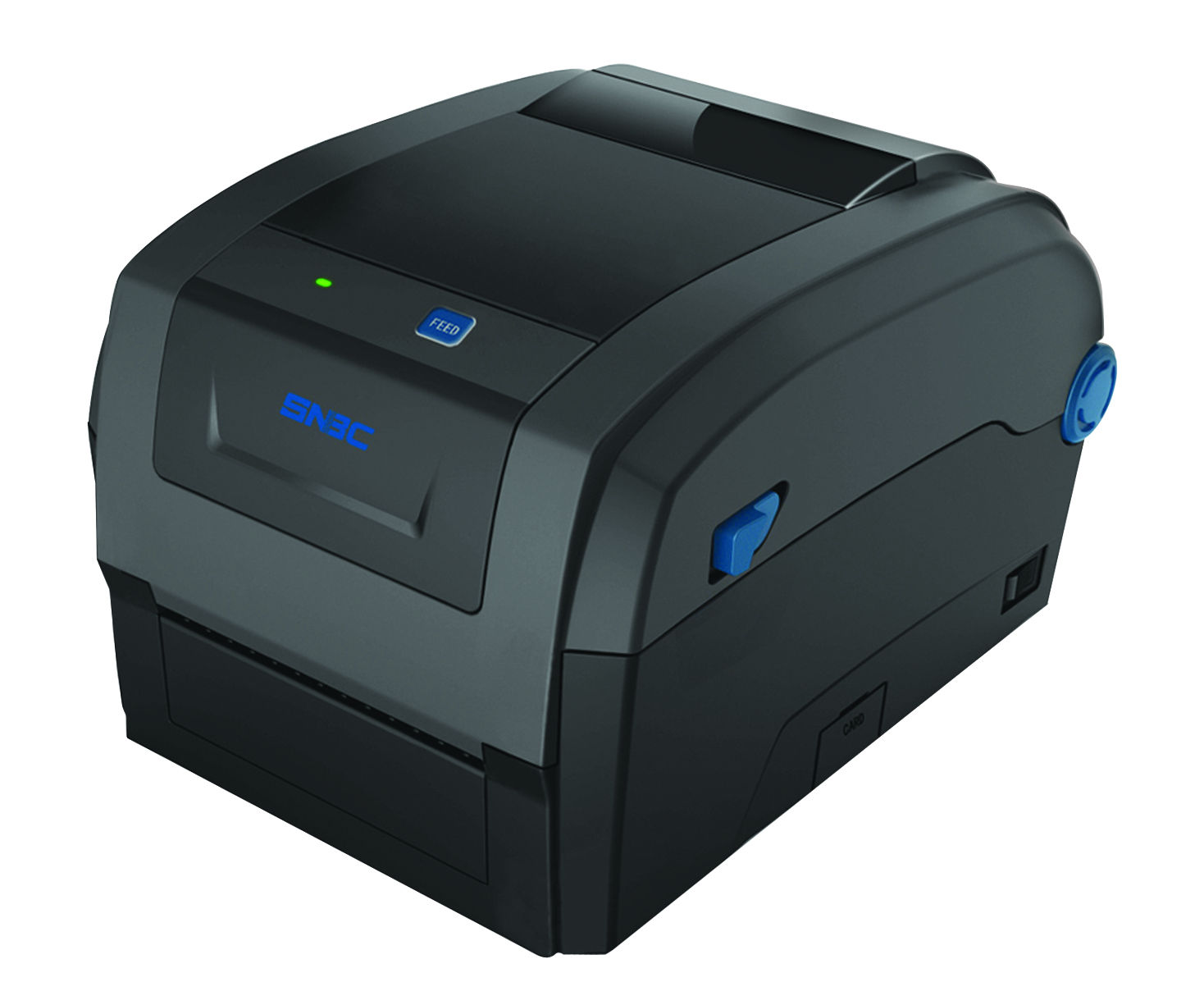

BTP-3200E/3300E

Product Specifications

Specification	ltem	BTP-3200E	BTP-3300E
Print	Print method	Direct thermal/thermal transfer printing
	Resolution	203 DPI	300 DPI
	Print width	Max.104mm	Max.106mm
	Print speed	Max.152mm/s	Max.102mm/s
	Memory	FLASH:4MB(8MB); SDRAM:64MB
	Sensor	Paper end sensor, Label gap sensor, Black mark sensor, Coveropening sensor, TPH voltage sensor, TPH overheating sensor,Ribbon detection sensor, Peel off sensor
	Driver	Windows, MacOS, Linux
	Button LED,LCD	1 button, 1 LED, 1 LCD(Optional)
	Interface	Standard: USB Optional: Parallel, Serial,Ethernet, Wi-Fi, Bluetooth
Barcode Font Graphic	1D Barcode	Code 39, UPC-A, UPC-E, Interleaved 2 of 5, Code 128, EAN-8,EAN-13, HBIC (code 39 with verify symbol), Codabar,industry/interleaved 2 of 5, storage and transportationCode, UPC2, UPC5, Code 93, Postnet 25 (China), UCC/EAN,matrix 25, POSTNET code
	2D Barcode	PDF417, Maxicode, QR code
	Graphic printing	Binary unformatted bitmap, HEX, PCX, BMP and IMG filescan be downloaded to FLASH or RAM
Paper	Paper type	Label paper, Continuous paper, Marked paper
	Paper width	25~118mm
	Paper roll ID	25.4mm/38mm
	Paper out	Tear off, Peel off, Paper cut
	Paper roll OD	Max.127mm
Ribbon	Ribbon length	Max.300m
	Ribbon ID	25.4mm
Power supply	Input	AC 100-240V,50/60Hz
	Output	DC 24V, 2.5A
Environment	Operation condition	5~45℃,20~90%RH(40℃)
	Storage condition	-40~60℃,20~93%RH(40℃)
Dimension	Dimension	216(W)x306(D)x185(H)mm
Weight	Weight	Approx.3.45Kg
Standard	Certification	CCC, UL, FCC, CB, CE
