Label Printer

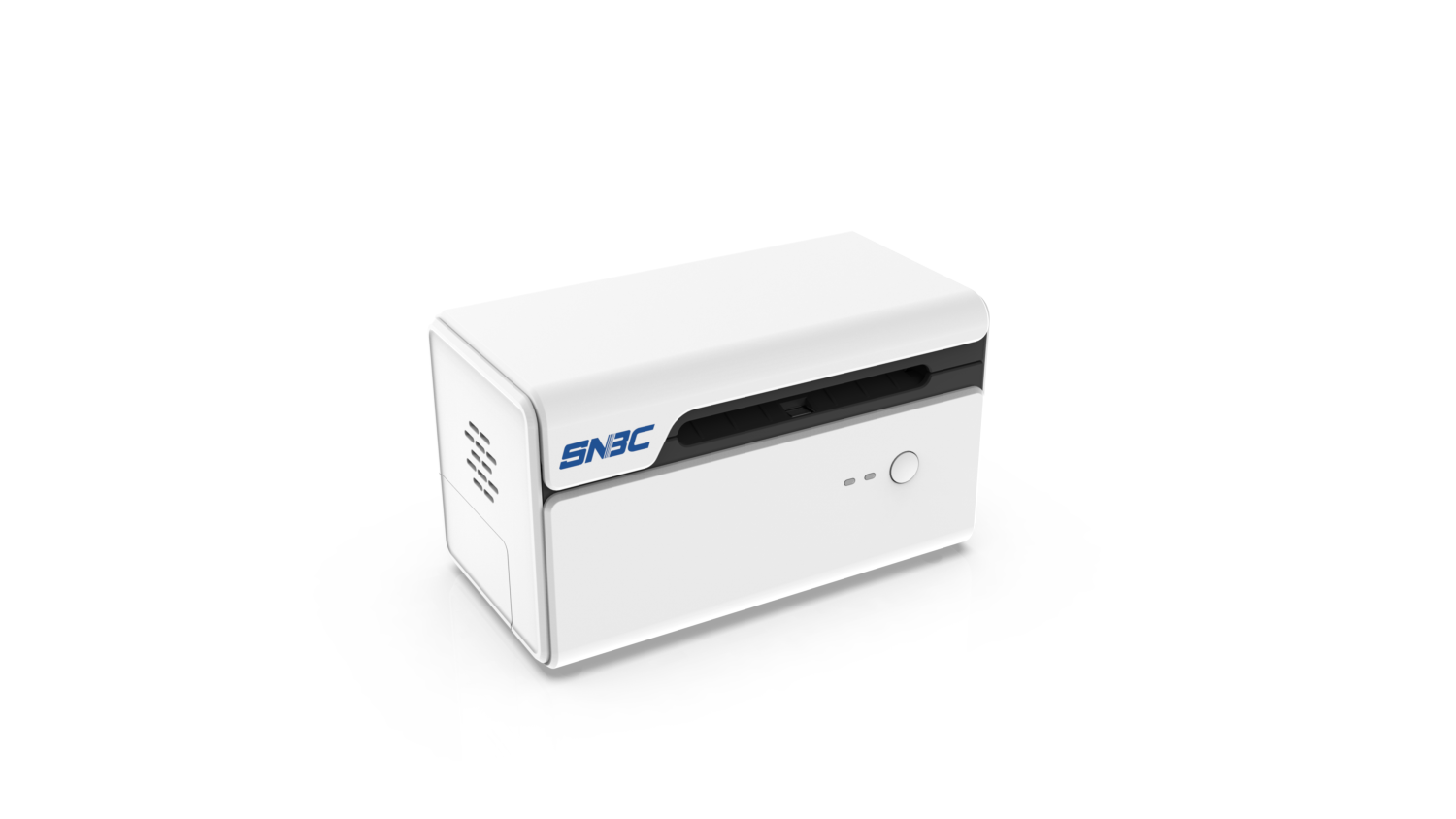

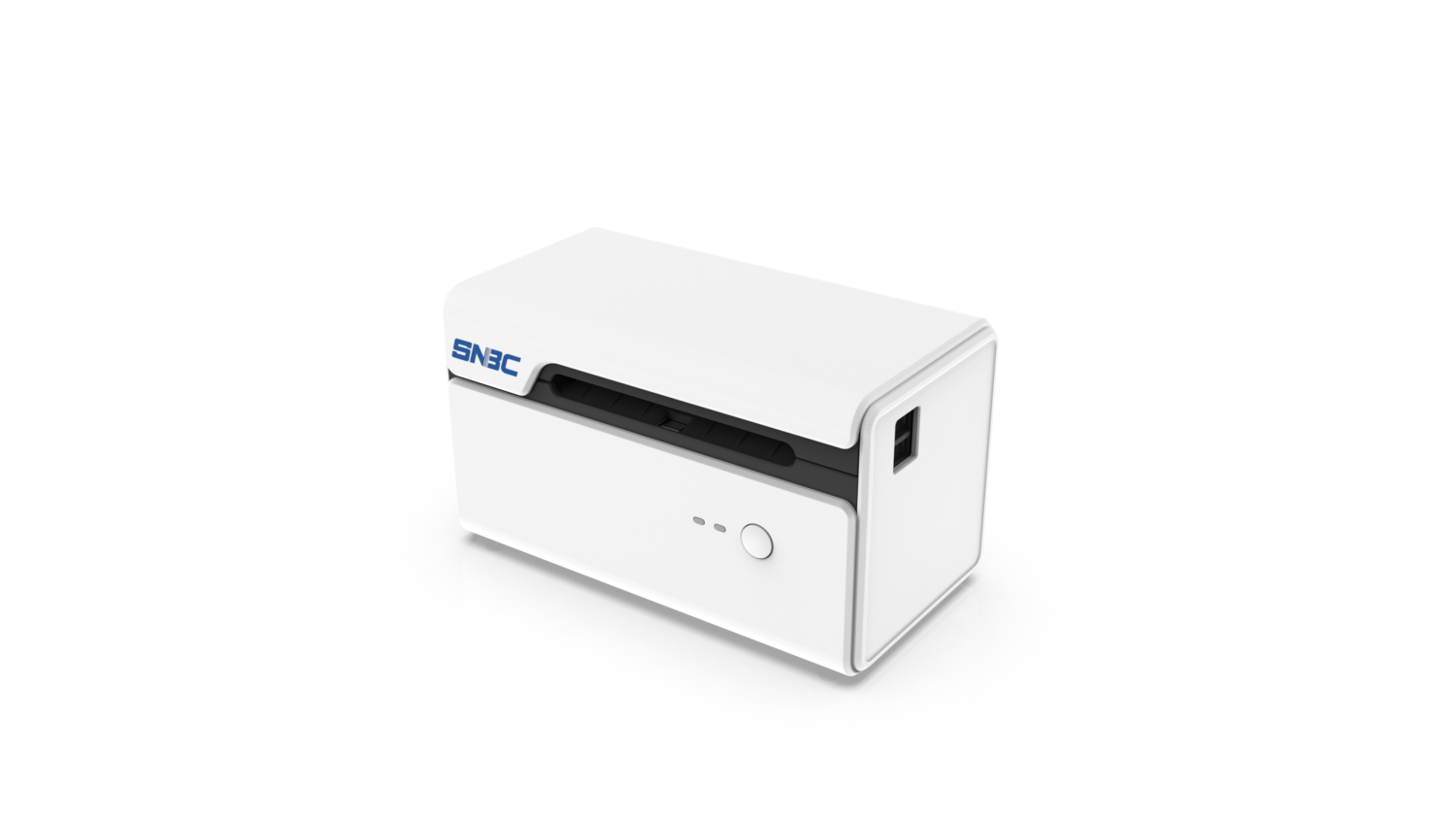

MAX.76mm Label Printer
BTP-L730
152mm/s high-speed printingInnovative and compact design, user-friendly operation
With large memory (64MB SDRAM) to preload more bitmaps
Support BPLT, BPLZ, and BPLE programming languages
Product Specifications
| Specification | ltem | Relevant Data |
| Print method | Direct thermal printing | |
| Resolution | 203 DPI | |
| Print width | Max.76mm | |
| Print speed | Max.152mm/s | |
| Memory | / | |
| Sensor | Paper end sensor, Label gap sensor, Black mark sensor, Coveropening sensor, TPH voltage sensor, TPH overheating sensor | |
| Driver | Windows | |
| Button LED,LCD | 1 button, 1 LED, | |
| Interface | Standard: USB | |
| Barcode Font Graphic | 1D Barcode | / |
| 2D Barcode | / | |
| Graphic printing | Binary unformatted bitmap, HEX, PCX, BMPand IMG files can be downloaded to FLASHOr RAM | |
| Paper | Paper type | Label paper, Continuous paper, Marked paper |
| Paper width | 20~80mm | |
| Paper roll ID | / | |
| Paper out | Tear off | |
| Paper roll OD | Max.110mm | |
| Ribbon | Ribbon ID | / |
| Output | / | |
| Power supply | Input | AC 100-240V, 50/60Hz |
| Output | DC 24V, 1.5A | |
| Environment | Operation condition | 5~45℃,20~90%RH(40℃) |
| Storage condition | -40~60℃,20~93%RH(40℃) | |
| Dimension | Dimension | 166(W)x89(D)x94(H)mm |
| Weight | Weight | Approx.0.61Kg |
| Standard | Certification | CCC |
