BTP-L540_SNBC New Beiyang

Home > Printing and Scanning Products > Label Printer > MAX.56/104mm Label Printer

Label Printer

MAX.56/104mm Label Printer

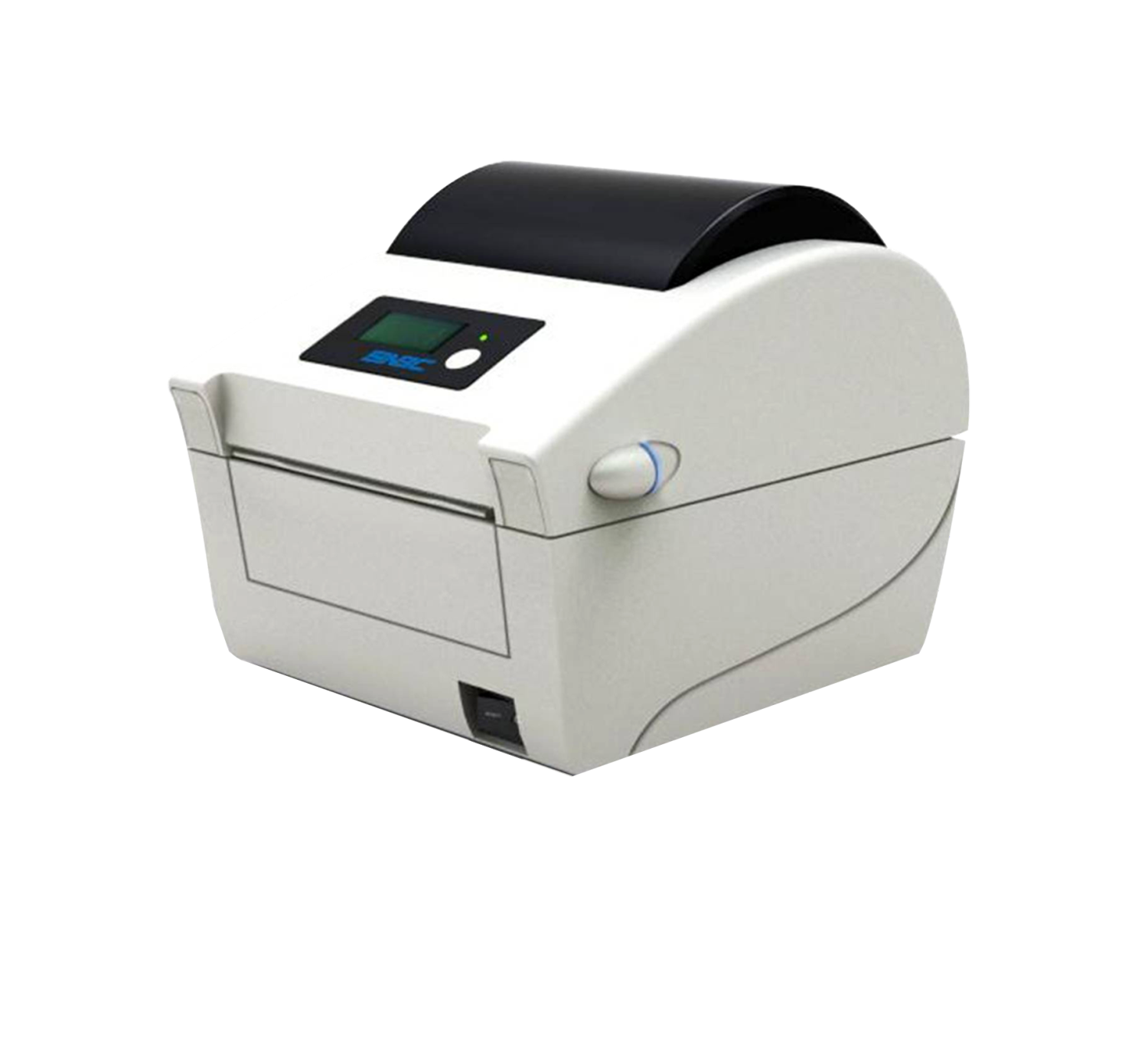

BTP-L540

Product Specifications

Specification	ltem	Relevant Data
Print	Print method	Direct thermal printing
	Resolution	203 DPI
	Print width	Max.108mm
	Print speed	Max.152mm/s
	Memory	FLASH:4MB(8MB); SDRAM:64MB
	Sensor	Paper end sensor, Label gap sensor, Black mark sensor, Coveropening sensor, TPH voltage sensor, TPH overheating sensor,Peel off sensor
	Driver	Windows, MacOS, Linux
	Button LED,LCD	1 button, 1 LED, 1 LCD(Optional)
	Interface	Standard: USB Optional: Serial, Ethernet,Bluetooth
Barcode Font Graphic	1D Barcode	Code 39, UPC-A, UPC-E, Interleaved 2 of 5, Code 128, EAN-8,EAN-13, HBIC (code 39 with verify symbol), Codabar,industry/interleaved 2 of 5, storage and transportationCode, UPC2, UPC5, Code 93, Postnet 25(China), UCC/EAN,matrix 25, POSTNET code
	2D Barcode	PDF417, Maxicode, QR code
	Graphic printing	Binary unformatted bitmap, HEX, PCX, BMPand IMG files can be downloaded to FLASHOr RAM
Paper	Paper type	Label paper, Continuous paper, Marked paper
	Paper width	20~120mm
	Paper roll ID	12.7/25.4mm
	Paper out	Tear off, Peel off
	Paper roll OD	Max.127mm
Ribbon	Ribbon ID	/
Ribbon	Output	/
Power supply	Input	AC 100-240V, 50/60Hz
Power supply	Output	DC 24V, 2.5A
Environment	Operation condition	5~45℃,20~90%RH(40℃)
Environment	Storage condition	-40~60℃,20~93%RH(40℃)
Dimension	Dimension	172(W)x210(D)x167(H)mm
Weight	Weight	Approx.1.6Kg
Standard	Certification	CCC, UL, FCC, CB, CE
