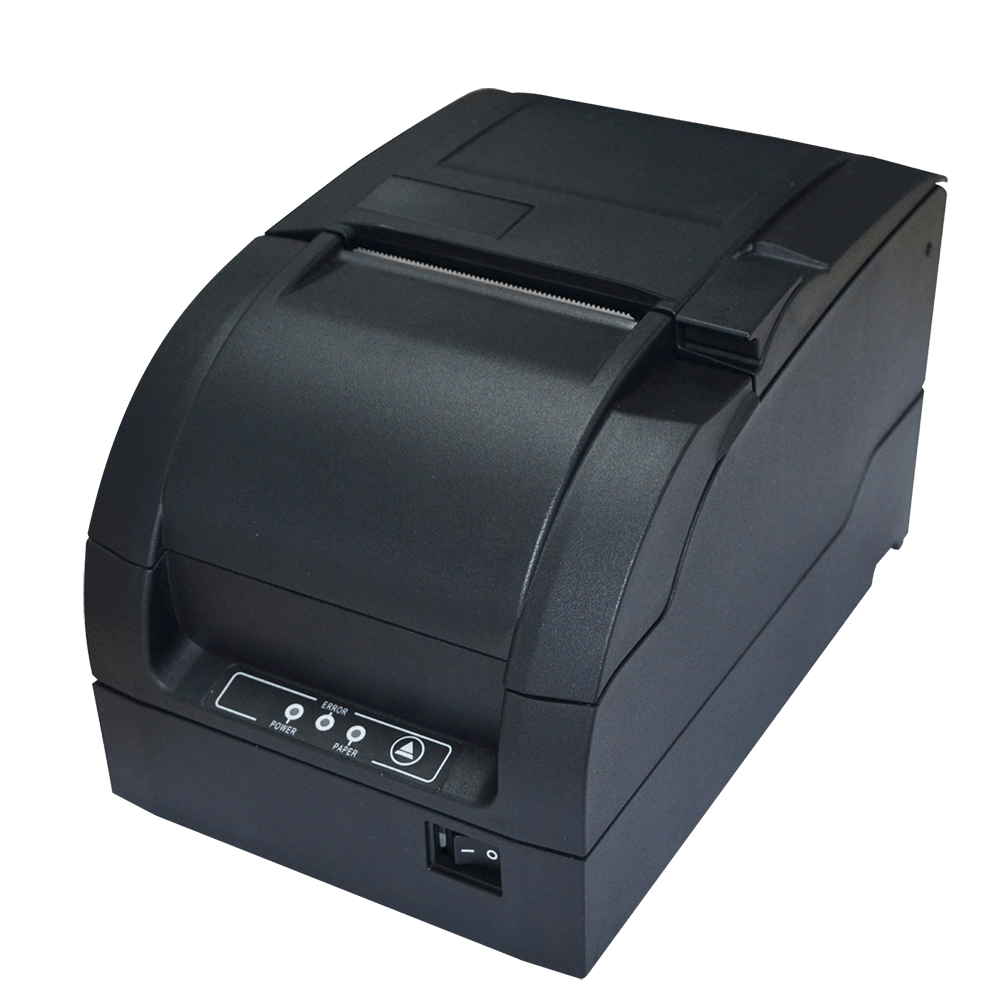

BTP-M300A

Product Specifications

Specification	ltem	Relevant Data
Print	Print method	9-pin serial impact dot matrix
	Print width	Max.400(half dots)/200(full dots)
	Print speed	Max.4.7LPS
	Interface	Standard: USB+Serial+Ethernet Optional: USB+Serial
	Cash drawer control	1~2 cash drawers
Font	Font	Standard ASCll(9X9),Compressed ASCll(7X9)
Font	Character set	95 Alphanumeric, 37 types of internationalcharactersOptional: Traditional/Simplified Chinese
Data buffer	Receive buffer	4KB/64KB
	NV bit image data area	128KB
	User NV memory	8KB
Paper	Paper type	Continuous paper, Marked paper
	Paper width	57.5/69.5/76/80 ± 0.5 mm
	Paper thickness	Single layer:0.06~0.085mm
		Multi-layer:(1 original+1 copy):0.05~0.08mm
		Total thickness_0.14mm
	Paper out	Full cut, Partial cut, Tear off
	Paper roll OD	Max.83mm
Power supply	Input	AC 100-240V,50/60Hz
Power supply	Output	DC 24V,1.5A
Reliability	Cutter lifetime	800,000 cuts
	Printing Mechanism lifetime	10,000,000 lines
	Print head lifetime	150,000,000 characters
Environment	Operation condition	5~45℃,20~90%RH(40℃)
Environment	Storage condition	-40~60℃,20~93%RH(40℃)
Dimension	Dimension	160(W)x245(D)x155(H)mm
Weight	Weight	Approx.3.2Kg
Standard	Certification	CCC, UL, FCC, CB, CE, Energy star, RCM, ICES, UKCA
